Gratum est emere Exquisitum Screw Partem Thread Machina Rolling a nobis, omnis postulatio clientium intra 24 horas respondetur. RONEN MACHINATIO est opificem professionalem, velimus tibi Exquisitum Screw Partis Thread Machina Rolling praebere et tibi munus professionalem praebere et pretium tibi melius.
Exquisitus Screw Part Thread Rolling Machina features:
1. Cum Praeside, celeritatem processus expediendi, operandi manuali idoneo, accommodare potes.
2. With can control, low defect rate, high yield.
3. Usus systematis cycli refrigerationis, potest vita altiorem rotam cylindro facere.
4. Dens alius anterius ad libitum sub-sede, potes processus longioris et longioris vitae machinae efficere, volvens productum praecisionis firmioris.
2.Product Parameter (specification)
Duo-Axles HYDRAULICUS Exquisitus Screw Part Thread Rolling Machina:
|
Model |
M4-M20 |
M2-M12 |
|
volvens modum |
Una vel continua sequelae volubilem |
Una vel continua sequelae volubilem |
|
Rolling workpiece diameter range |
3.2-ø19.2mm |
ø1.65-ø11.2mm |
|
Fila picis range |
0.4-2.5P |
0.4-1.5P |
|
Maximam longitudinem sequelae |
Fixum vel Ictus-pascens |
Fixum vel Ictus-pascens |
|
Celeritas gyrari |
30 r/min |
40 r/min |
|
Diameter cylindrus exterior |
95-ø120mm |
98mm |
|
Diameter cylindrus interior (lucus) |
ø50.5mm(8×4) |
ø50.5mm(8×4) |
|
crassitudine cylindro |
60mm |
50mm |
|
capacitas |
80pcs/min |
80-220pcs/min |
|
Hospes motor |
3HP |
3HP 8N 2.2KW |
|
Hydraulica motoris |
2HP (1.5KW) |
2HP (1.5KW) |
|
Pondus |
680 KG |
3600KG |
|
Mechanica volumen |
1100*1000*1200mm |
1000*1450*750mm |
Three-axles Cam Type Exquisitus Screw Part Thread Rolling Machine:
|
Model |
M12-M35 |
M20-M60 |
|
volvens modum |
Una pars sequelae volubilem |
Una pars sequelae volubilem |
|
Rolling workpiece diameter range |
11.2--ø34.2mm |
19.2-ø59.2mm |
|
Fila picis range |
0.5-2.5P |
0.8-3.5P |
|
Maximam longitudinem sequelae |
26mm |
26mm |
|
Celeritas gyrari |
480r/min |
300r/min |
|
Roller exteriores diametri |
45-ø75mm |
52-ø115mm |
|
Diameter cylindrus interior (lucus) |
ø35mm(10×5) |
ø40mm(12×6) |
|
crassitudine cylindro |
30mm |
30mm |
|
capacitas |
28pcs/min |
20pcs/min |
|
Hospes motor |
1.5Kw |
3Kw |
|
Hydraulica motoris |
380v |
380v |
|
Pondus |
220KG |
280KG |
|
Mechanica volumen |
1000*850*1250mm |
1100*950* 1250mm30mm |
Three-axles Thru-Feed Exquisitus Screw Part Thread Rolling Machine:
|
Model |
Maximilianus. Thread Diameter (mm) |
Maximilianus. Thread Longitudo (mm) |
Movere Dies Stabilis Longitudo (mm) (L*TH.*W) |
Motor (Kw) |
capacitas (pcs/min) |
Magnitudo (L*W*H) (m) |
Pondus (Kg) |
|
|
M670 |
8 |
70 |
125*25*70 |
110*25*70 |
4 |
80-100 |
1.60*1.60*1.35 |
1300 |
|
M8-80 |
10 |
80 |
170*30*80 |
150*30*130 |
5.5 |
80-100 |
1.74*1.36*1.20 |
1500 |
|
M10-130 |
12 |
130 |
170*30*130 |
150*30*130 |
7.5 |
70-90 |
2.00*1.48*1.25 |
2000 |
|
M12-160 |
14 |
160 |
210*40*160 |
190*40*200 |
11 |
40-50 |
2.45*1.80*1.45 |
2800 |
|
M14-20 |
16 |
200 |
210*40*200 |
190*40*200 |
15 |
30-40 |
2.50*1.65*1.50 |
3500 |
|
M16-200 |
18 |
200 |
210*45*200 |
190*45*200 |
15 |
30-40 |
2.75*2.10*1.65 |
4000 |

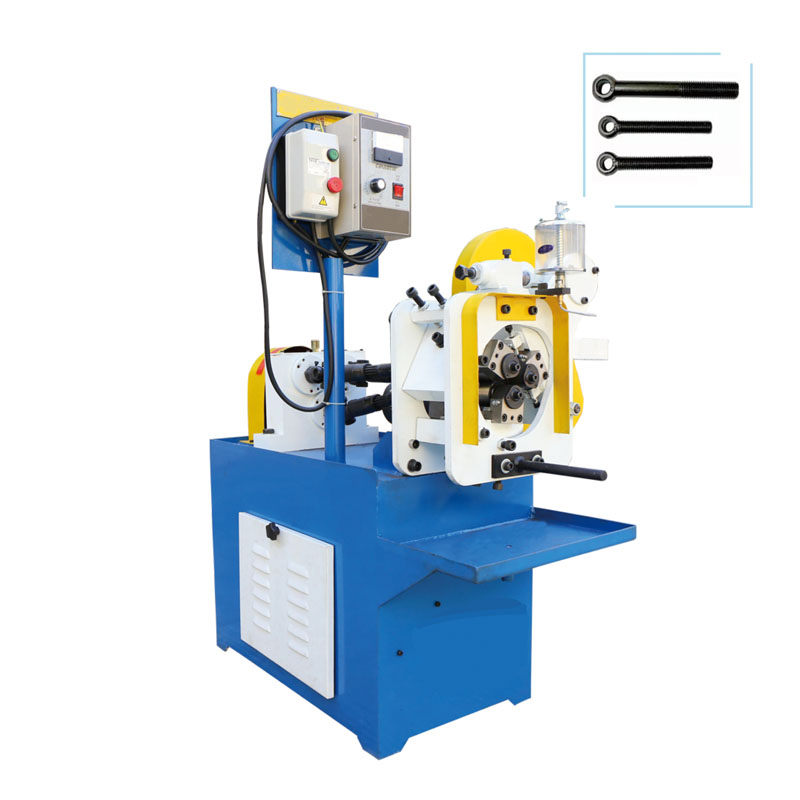

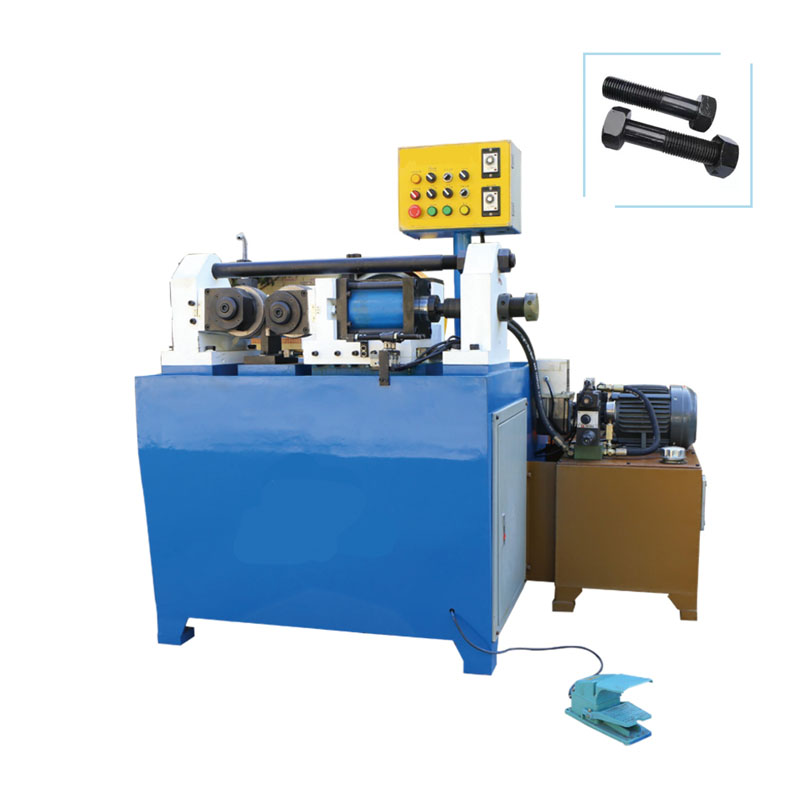

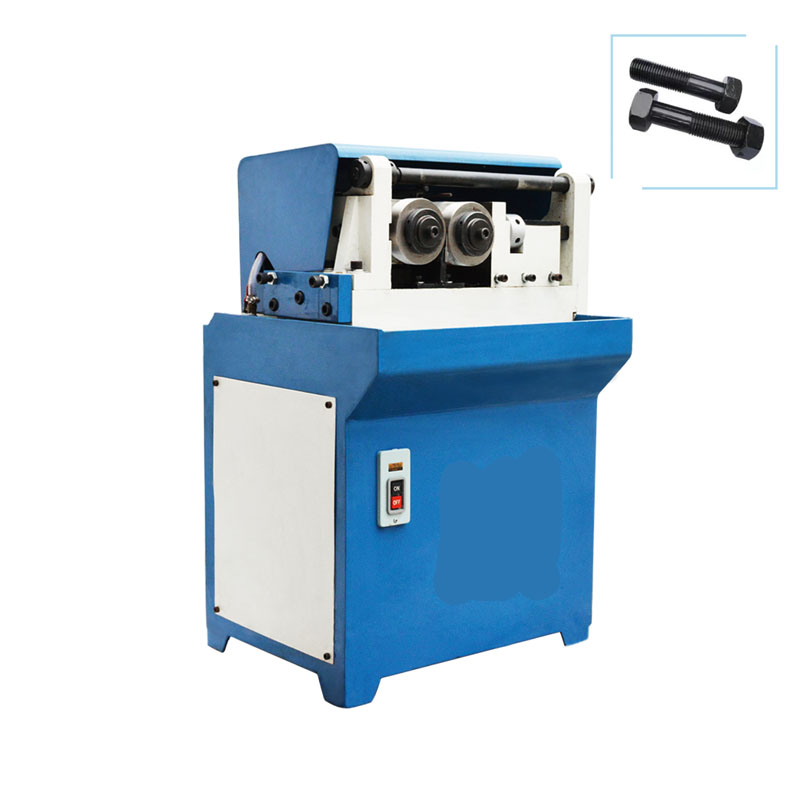

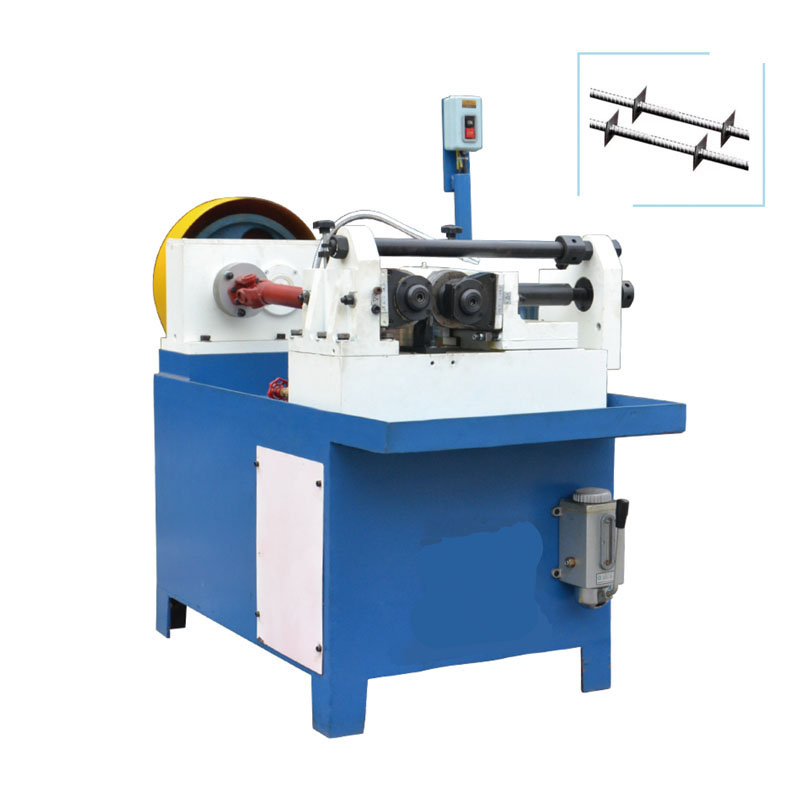

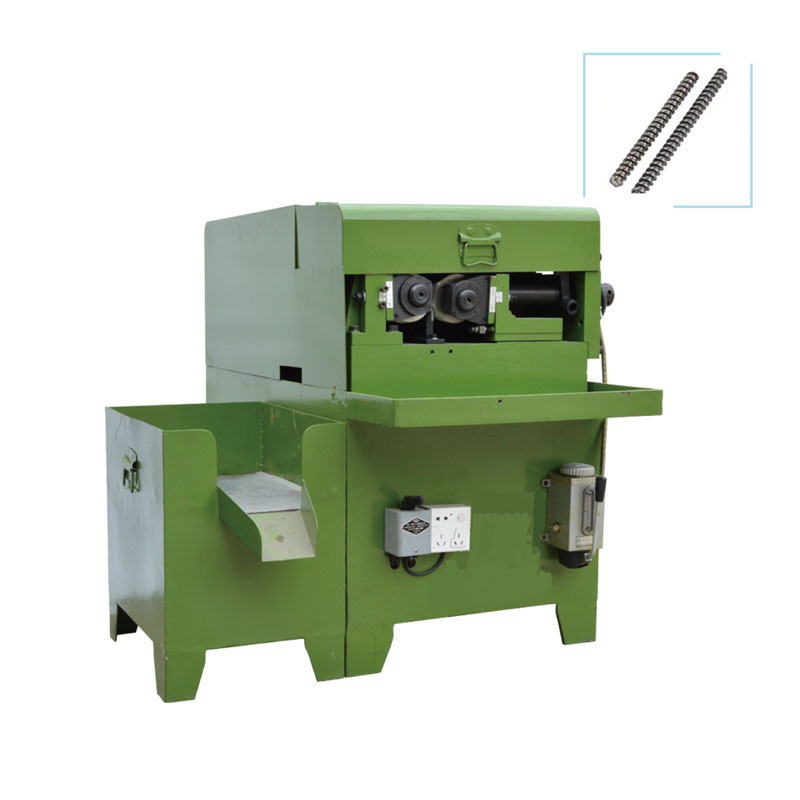

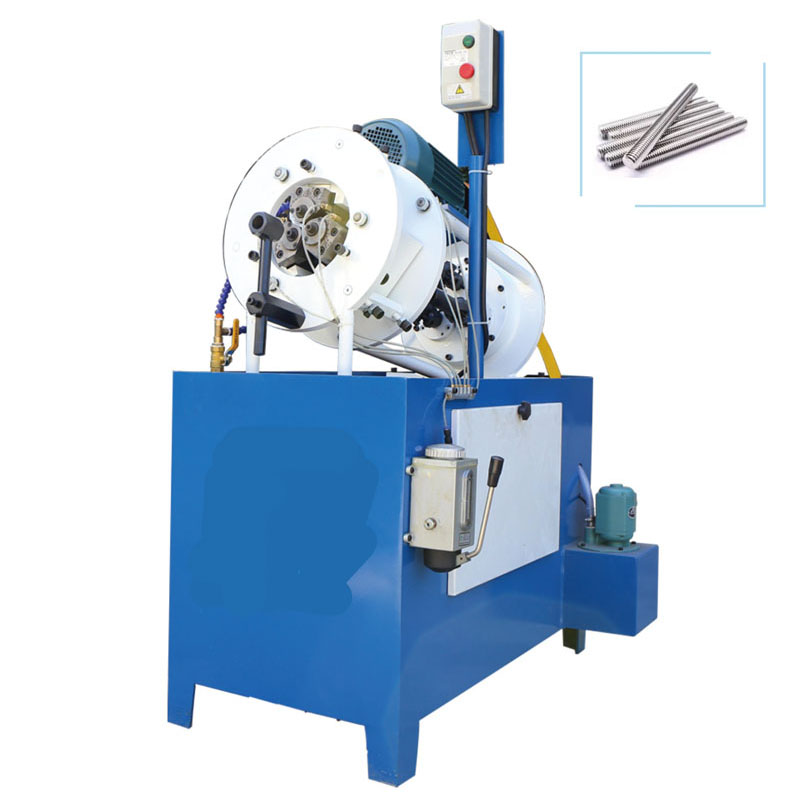

Apparatus Propono
Exquisitus Screw Part Thread Rolling Machina:
Producta perfecta:
Productum Propono Video
Exquisitus Screw Part Thread Rolling Machine video.
Related Products
RONEN MACHINATIO fabrica fabricandi est ad fabricandum machinas frigidas machinae (Fastener) in Sinis, exquisito cochleam Partem sequelam machinam Rolling praebere, cochlea machina frigida, machina nux formans, apparatus cochleae, machina televisifica, machina televisifica, machina percussura nucis, apparatus fulminis pristini; et sic porro.
Testimonia
Exquisitus Screw Part Thread Rolling Machina testimoniales.
FAQ
Q.What genus sarcina tibi offeres?
A.Normaliter in FCL naviculas, si emptoris indiget, causas ligneas, grabatum sarcinas aliasve sarcinas aptas facere possumus.
Q: certificationem CE habes?
A: Ita, certificationem CE habemus.
Q: Ubi est officina tua?
A: Officina fabricanda nostra in Sinis Hebei Provincia sita est.
Q:Do tibi morem officia praebere?
A:Imo, machinam customize secundum exempla tua vel delineatas.
Q: An aliqua disciplina provides curare ut nostri utentes machinam bene operari possint?
A: Nos singula videos ac instructiones pro machina providebimus. Disciplinae ministerium providere etiam possumus. Machina facilis est ad operandum (Antequam naves disponamus, committendo perficiendum est ut machina uti possis cum accepisti.), et RONEN MACHINERY etiam ducem video ac ministerium in instrumento instrumenti utendo praebebit. Viam accipimus te ad officinas nostras venire vel ad officinas tuas ire ad machinam committendam.
