Certo certificare potes emere Sinarum Professional Quality High Carbon Steel Screw Thread Rolling Machina from RONEN. RONEN frigidum est fabricandi machinas (Fastener) fabrica et elit in Sinis. Technologiam habemus Taiwan fabrum campum team, et cum vigilantia et technica arte productionis processus, herba area circiter 15000+ quadratum metri est.
High Carbon Steel Screw Thread Rolling Machine commoda:
1.Suitable ad expediendas picis parvas, longitudinis workpiece.
2.Gear arca cum anni helicae, curatio calces calor post molere ad redigendum sonitus
3. Infeed skateboard transmissionem hydraulicam adoptat, et positio accurata est.
4. Usus consiliorum quadrati raili, cancellos post curationem caloris post stridorem, mechanica labens vires lenis ad confirmandum.
2.Product Parameter (specification)
Duo-Axles Hydraulic High Carbon Steel Screw Thread Rolling Machina:
|
Model |
M4-M20 |
M2-M12 |
|
volvens modum |
Una vel continua sequelae volubilem |
Una vel continua sequelae volubilem |
|
Rolling workpiece diameter range |
3.2-ø19.2mm |
ø1.65-ø11.2mm |
|
Fila picis range |
0.4-2.5P |
0.4-1.5P |
|
Maximam longitudinem sequelae |
Fixum vel Ictus-pascens |
Fixum vel Ictus-pascens |
|
Celeritas gyrari |
30 r/min |
40 r/min |
|
Diameter cylindrus exterior |
95-ø120mm |
98mm |
|
Diameter cylindrus interior (lucus) |
ø50.5mm(8×4) |
ø50.5mm(8×4) |
|
crassitudine cylindro |
60mm |
50mm |
|
capacitas |
80pcs/min |
80-220pcs/min |
|
Hospes motor |
3HP |
3HP 8N 2.2KW |
|
Hydraulica motoris |
2HP (1.5KW) |
2HP (1.5KW) |
|
Pondus |
680 KG |
3600KG |
|
Mechanica volumen |
1100*1000*1200mm |
1000*1450*750mm |
Three-Axles Cam Type High Carbon Steel Screw Thread Rolling Machine:
|
Model |
M12-M35 |
M20-M60 |
|
volvens modum |
Una pars sequelae volubilem |
Una pars sequelae volubilem |
|
Rolling workpiece diameter range |
11.2--ø34.2mm |
19.2-ø59.2mm |
|
Fila picis range |
0.5-2.5P |
0.8-3.5P |
|
Maximam longitudinem sequelae |
26mm |
26mm |
|
Celeritas gyrari |
480r/min |
300r/min |
|
Roller exteriores diametri |
45-ø75mm |
52-ø115mm |
|
Diameter cylindrus interior (lucus) |
ø35mm(10×5) |
ø40mm(12×6) |
|
crassitudine cylindro |
30mm |
30mm |
|
capacitas |
28pcs/min |
20pcs/min |
|
Hospes motor |
1.5Kw |
3Kw |
|
Hydraulica motoris |
380v |
380v |
|
Pondus |
220KG |
280KG |
|
Mechanica volumen |
1000*850*1250mm |
1100*950* 1250mm30mm |
Three-axles Thru-Feed High Carbon Steel Screw Thread Rolling Machine:
|
Model |
Maximilianus. Thread Diameter (mm) |
Maximilianus. Thread Longitudo (mm) |
Movere Dies Stabilis Longitudo (mm) (L*TH.*W) |
Motor (Kw) |
capacitas (pcs/min) |
Magnitudo (L*W*H) (m) |
Pondus (Kg) |
|
|
M670 |
8 |
70 |
125*25*70 |
110*25*70 |
4 |
80-100 |
1.60*1.60*1.35 |
1300 |
|
M8-80 |
10 |
80 |
170*30*80 |
150*30*130 |
5.5 |
80-100 |
1.74*1.36*1.20 |
1500 |
|
M10-130 |
12 |
130 |
170*30*130 |
150*30*130 |
7.5 |
70-90 |
2.00*1.48*1.25 |
2000 |
|
M12-160 |
14 |
160 |
210*40*160 |
190*40*200 |
11 |
40-50 |
2.45*1.80*1.45 |
2800 |
|
M14-20 |
16 |
200 |
210*40*200 |
190*40*200 |
15 |
30-40 |
2.50*1.65*1.50 |
3500 |
|
M16-200 |
18 |
200 |
210*45*200 |
190*45*200 |
15 |
30-40 |
2.75*2.10*1.65 |
4000 |

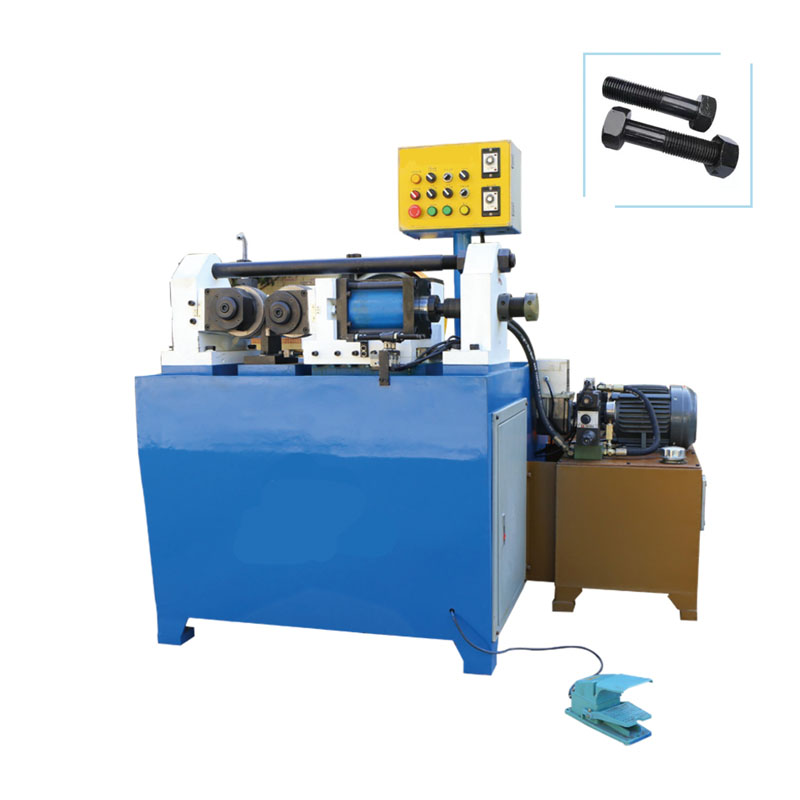

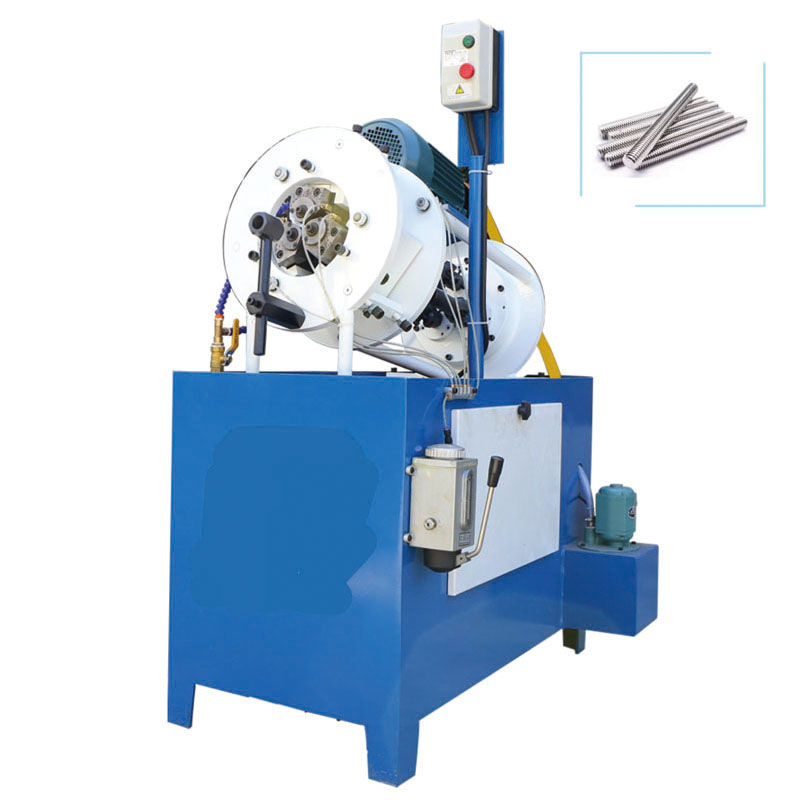

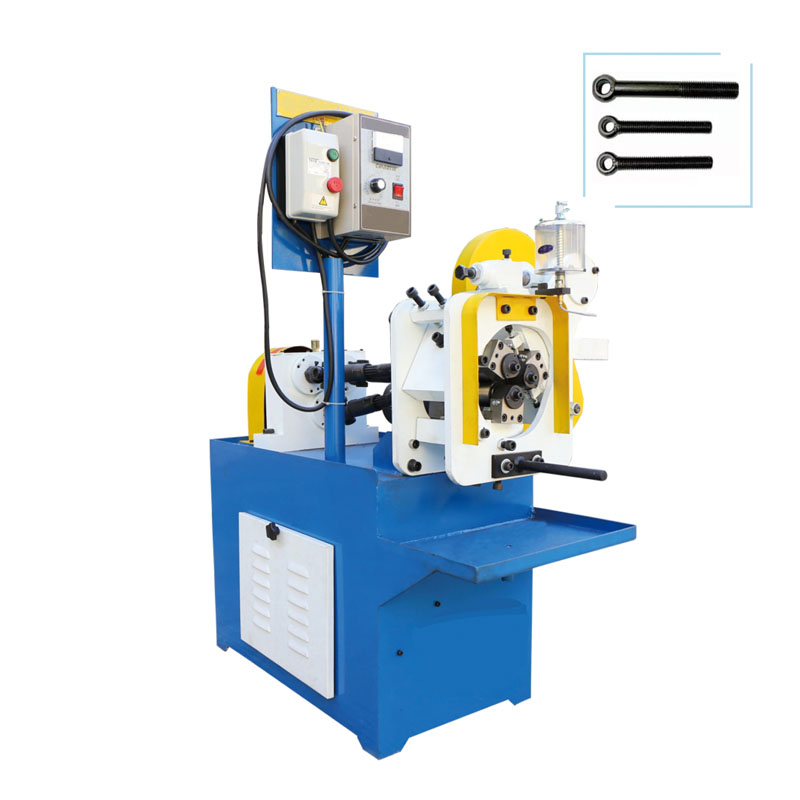

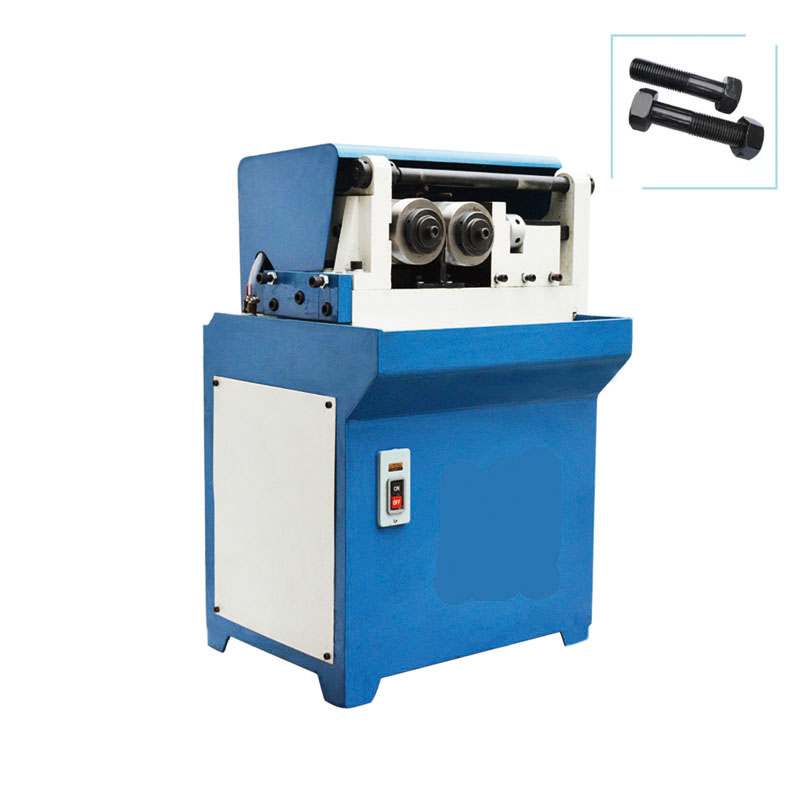

Apparatus Propono
High Carbon Steel Screw Thread Rolling Machine:
Producta perfecta:
Productum Propono Video
High Carbon Steel Screw Thread Rolling Machine video.
Related Products
RONEN MACHINATIO clarum est opificem in machinatione frigida Heading (Fastener) in Sinis producenda, praebet Maximum Carbon Steel Screw Thread Machina Rolling, cochlea machina formans, nux machina fabricandi frigida, apparatus cochleae ex parte stamina, machina velum genus, nux cochleae machina icta, pessulus machinam faciens, etc.
Testimonia
Princeps Carbon Steel Screw Thread Rolling Machina testimoniales.
FAQ
Q: Quae sunt verba solucionis?
A: sustinemus TT/T, L/C, etc. TT, XXX% in antecessum, et statera LXX% ante shipment.
Q: certificationem CE habes?
A: Ita, certificationem CE habemus.
Q: Quomodo sumptus de naves?
A: Sumptus navium pendet ex ratione quam vis bona adipisci. Partus exprimere solet modum celerrimum, sed est quoque methodus carissima. Shipping optima solutio est pro magna quantitate. Ad impensas naves exigendas, solum tibi accuratiorem informationem praebere possumus postquam quantitas, pondus ac ratio cognoscuntur. Quaeso, contact us pro maiori notitia.
Q: Quousque potes providere warantiam?
A: machina nostra unum annum habet warantum.
Q: Ubi est officina tua?
A: Officina fabricanda nostra in Sinis Hebei Provincia sita est.
