China Machinery Bolt Part Parting Machine Suppliers, Manufacturers - Factory Direct Price

depictio producti

Machinery Bolt Part Faciens Machina features:

1. Pressurae lubricationis, rationabilis dispositio olei ambitus et sulcus olei, sufficiens lubricatio ad meliorem apparatum vita proficit.
2. Magni momenti usus est ad varia genera fulminum in agro clavicularium industriam producendi.

Parameter Product (specification)

3 station Machinery Bolt Part Faciens Machina:

Specification	Unitas	RNBF-63S	RNBF-83L	RNBF-103S	RNBF-103L	RNBF-133S	RNBF-133L
Statio no.	Nec.	3	3	3	3	3	3
cudendum potestatem	kg	35,000	60,000	80,000	80,000	115,000	115,000
Max.cutting diametri	mm	F8	Φ10	F12	F12	F15	F15
Max.cutting longitudo	mm	86	130	105	192	145	250
Celeritas	pcs / min	160-240	120-180	120-180	80-120	100-160	60-100
P.K.O Stroke	mm	12	18	15	15	26	25
K.O Stroke	mm	65	100	80	162	102	230
Praecipuum arietem plaga	mm	110	160	150	280	200	350
Praecipua motoria potestas	kw	11	18.5	18.5	22	30	30
Overall dim.of abscindere mori	mm	Φ35*45L	Φ35*56L	Φ45*59L	Φ45*59L	Φ63*69L	Φ55*70L
Super dim.of ferrum mori	mm	Φ40*90L	Φ45*125L	Φ53*115L	Φ53*112L	Φ60*130L	Φ60*179L
Dim.of principalis mori altiore	mm	Φ50*85L	Φ60*130L	Φ75*108L	Φ75*200L	Φ86*135L	Φ86*265L
Mori pice	mm	60	70	90	90	100	100
Approx.weight	kg	7,500	13,000	14,000	19,500	20000	31.000
Lorem telum diametri	mm	3-6	5-8	6-10	6-10	8-12.7	8-12.7
Scapus longitudinem vestis	mm	10-65	15-100	15-100	25-152	20-100	70-210

4 station Machinery Bolt Part Faciens Machina:

Specification	Unitas	RNBF-64S	RNBF-64L	RNBF-84SL	RNBF-84L	RNBF-104S	RNBF-104L
Statio no.	Nec.	4	4	4	4	4	4
cudendum potestatem	kg	40,000	40,000	60,000	65,000	80,000	80,000
Max.cutting diametri	mm	F8	F8	Φ10	Φ10	F12	F12
Max.cutting longitudo	mm	86	125	185	130	130	185
Celeritas	PCs/min	160-240	120-160	120-180	120-160	120-160	85-135
P.K.O Stroke	mm	12	12	18	18	20	30
K.O Stroke	mm	65	100	150	100	100	160
Praecipuum arietem plaga	mm	110	160	200	160	190	260
Praecipua motoria potestas	kw	11	11	15	22	22	30
Overall dim.of abscindere mori	mm	Φ30*45L	Φ30*45L	Φ35*56L	Φ35*56L	Φ45*56L	Φ45*59L
Super dim.of ferrum mori	mm	Φ40*90L	Φ40*125L	Φ45*125L	Φ45*125L	Φ53*125L	Φ53*215L
Dim.of principalis mori altiore	mm	Φ50*85L	Φ50*130L	Φ60*130L	Φ60*130L	Φ75*135L	Φ75*185L
Mori pice	mm	60	60	70	880	90	94
Approx.weight	kg	8,000	10,000	13,000	14,000	18,000	21000
Lorem telum diametri	mm	3-6	3-6	5-8	5-8	6-10	6-10
Scapus longitudinem vestis	mm	10-65	10-100	25-150	15-100	20-152	80-300

5 station Machinery Bolt Part Faciens Machina:

Specification	Unitas	RNBF-65S	RNBF-85L	RNBF-105S	RNBF-135L	RNBF-165S	RNBF-205S
Statio no.	Nec.	5	5	5	5	5	5
cudendum potestatem	kg	40,000	80,000	90,000	130,000	200,000	350,000
Max.cutting diametri	mm	F8	Φ10	F12	F15	F18	F23
Max.cutting longitudo	mm	86	130	133	190	190	240
Celeritas	PCs/min	120-200	95-160	90-150	60-105	50-80	45-75
P.K.O Stroke	mm	12	26	20	30	35	46
K.O Stroke	mm	65	85	110	160	160	220
Praecipuum arietem plaga	mm	110	140	190	270	285	346
Praecipua motoria potestas	kw	11	22	22	37	55	75
Overall dim.of abscindere mori	mm	Φ30*45L	Φ35*62L	Φ45*59L	Φ63*69L	Φ64*100L	Φ75*120L
Super dim.of ferrum mori	mm	Φ40*90L	Φ45*115L	Φ53*115L	Φ60*130L	Φ75*185L	Φ90*215L
Dim.of principalis mori altiore	mm	Φ50*85L	Φ60*120L	Φ75*135L	Φ86*190L	Φ108*200L	Φ125*240L
Mori pice	mm	60	80	94	110	129	140
Approx.weight	kg	10,000	16,000	20000	31.000	52,000	40,000
Lorem telum diametri	mm	3-6	5-8	6-10	8-12.7	10-16	12-20
Scapus longitudinem vestis	mm	10-65	15-100	15-105	25-152	25-152	25-200

Machina Details et Officina Propono

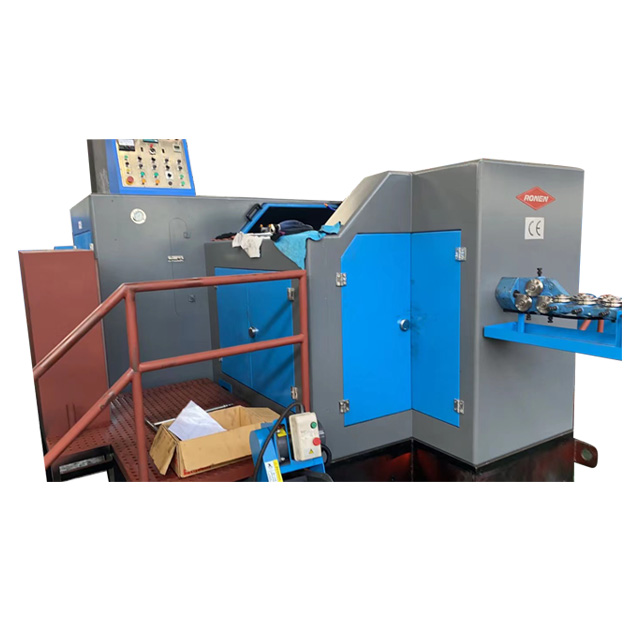

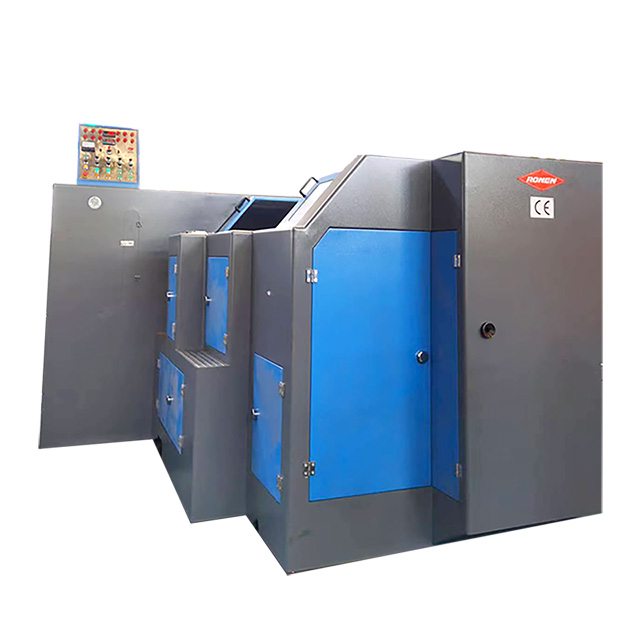

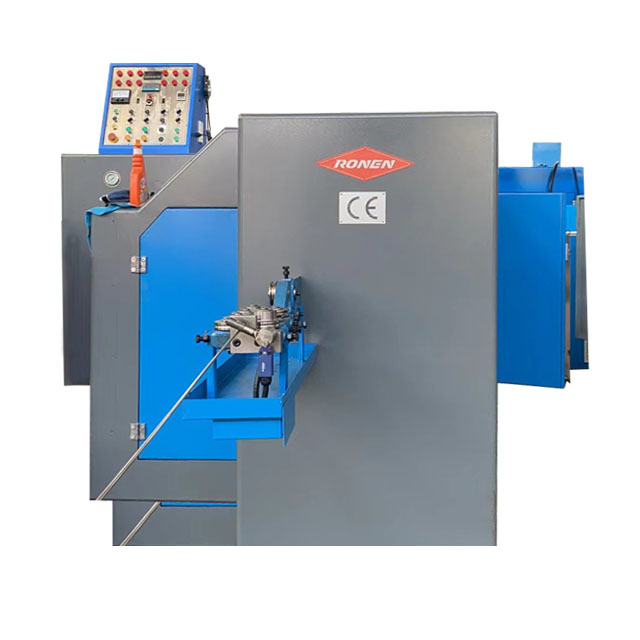

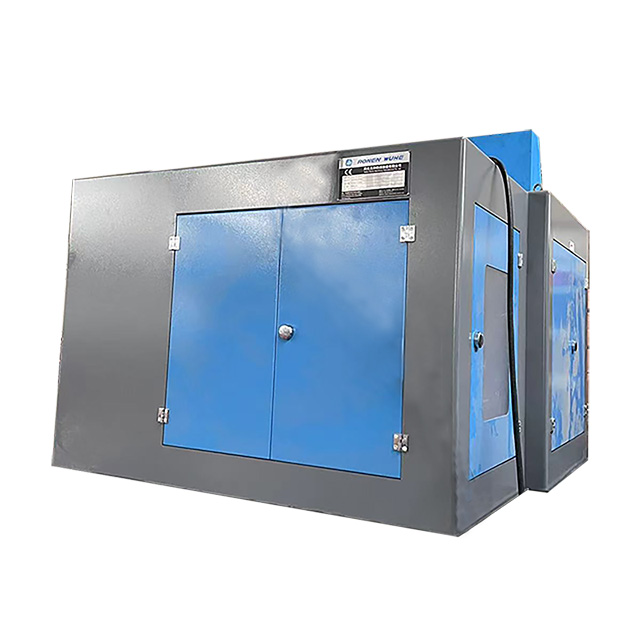

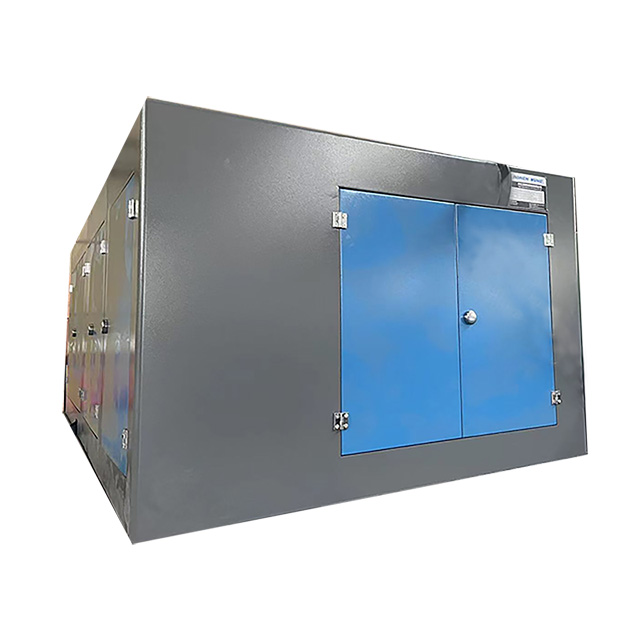

Machinery Bolt Part Parting Machine in RONEN officina.

Productum:

Product Function Propono Video

Machinery Bolt Parting Machine.

Testimonia

Machinery Bolt Part Faciens Machina: Testimonia.

FAQ

Q: Potesne providere committendo video et exempla?
A: Certus. Informationes (photos, videos, etc.) vobiscum in et post commissionem renovabimus, exempla mittemus. Shipment instituetur nisi postquam recte confirmas.

Q.What genus sarcina tibi offeres?
A.Normaliter in FCL naviculas, si emptoris indiget, causas ligneas, grabatum sarcinas aliasve sarcinas aptas facere possumus.

Q: Quousque potes providere warantiam?
A: machina nostra unum annum habet warantum.

Q: Numquid secundum contractum partus tempus disponere?
A: Scilicet. bona vobis quam primum ex contractu trademus. Non te usui officit.

Q: Quid de partus tempore?
A: Communiter intra XXX dies, sed pendet in tempore quantitatis et ordinis.
