Sequens introductio est ad Mild Steel Screw Thread Machina Rolling. Ronen® sperat auxilium tibi optimum invenias Screw Part Thread Machina Rolling tibi.
Mitis Steel Screw Thread Rolling Machina est genus multi-munus frigoris extrusionem machinae fingens. Filum volvens munus eius est volvere fila, recta linea et tunc pressione sub statu frigoris intra pressionis volubilem ambitum. Rolling of line, heical and heical spline anni; Erigens pressura reductionem, volvens et formans volvens.
Mitis Steel Screw Thread Rolling Machina peculiarities:
1. Per et fixum utrumque adhiberi potest, fusum frequentia convertentis moderatur, celeritati aptabile.
2.Feed circuit imperium hydrau adoptat, aequaliter pasce. Operatio simplex est.
3. Calces coegi post curationem caloris, expolitio, apparatus strepitus est parva, alta durabilitas.
4. Apta iungo, bicycli, autocineta industriae, iungo Tubingae.
2.Product Parameter (specification)
Duo-Axles HYDRAULICUS Mitis Steel Screw Thread Rolling Machina:
|
Exemplar |
M4-M20 |
M2-M12 |
|
volvens modum |
Una vel continua sequelae volubilem |
Una vel continua sequelae volubilem |
|
Rolling workpiece diameter range |
3.2-ø19.2mm |
ø1.65-ø11.2mm |
|
Fila picis range |
0.4-2.5P |
0.4-1.5P |
|
Maximam longitudinem sequelae |
Fixum vel Ictus-pascens |
Fixum vel Ictus-pascens |
|
Celeritas gyrari |
30r/min |
40r/min |
|
Diameter cylindrus exterior |
95-ø120mm |
98mm |
|
Diameter cylindrus interior (lucus) |
ø50.5mm(8×4) |
ø50.5mm(8×4) |
|
crassitudine cylindro |
60mm |
50mm |
|
capacitas |
80pcs/min |
80-220pcs/min |
|
Hospes motor |
3HP |
3HP 8N 2.2KW |
|
Hydraulica motoris |
2HP (1.5KW) |
2HP (1.5KW) |
|
Pondus |
680 KG |
3600KG |
|
Mechanica volumen |
1100*1000*1200mm |
1000*1450*750mm |
Three-Axles Cam Type mitis Steel Screw Thread Rolling Machina:
|
Exemplar |
M12-M35 |
M20-M60 |
|
volvens modum |
Una pars sequelae volubilem |
Una pars sequelae volubilem |
|
Rolling workpiece diameter range |
11.2--ø34.2mm |
19.2-ø59.2mm |
|
Fila picis range |
0.5-2.5P |
0.8-3.5P |
|
Maximam longitudinem sequelae |
26mm |
26mm |
|
Celeritas gyrari |
480r/min |
300r/min |
|
Roller exteriores diametri |
45-ø75mm |
52-ø115mm |
|
Diameter cylindrus interior (lucus) |
ø35mm(10×5) |
ø40mm(12×6) |
|
crassitudine cylindro |
30mm |
30mm |
|
capacitas |
28pcs/min |
20pcs/min |
|
Hospes motor |
1.5Kw |
3Kw |
|
Hydraulica motoris |
380v |
380v |
|
Pondus |
220KG |
280KG |
|
Mechanica volumen |
1000*850*1250mm |
1100*950* 1250mm30mm |
Three-axles Thru-Pasce mitis Steel stupra Thread Rolling Machina:
|
Exemplar |
Maximilianus. Thread Diameter (mm) |
Maximilianus. Thread Longitudo (mm) |
Movere Dies Stabilis Longitudo (mm) (L*TH.*W) |
Motor (Kw) |
capacitas (pcs/min) |
Magnitudo (L*W*H) (m) |
Pondus (Kg) |
|
|
M670 |
8 |
70 |
125*25*70 |
110*25*70 |
4 |
80-100 |
1.60*1.60*1.35 |
1300 |
|
M8-80 |
10 |
80 |
170*30*80 |
150*30*130 |
5.5 |
80-100 |
1.74*1.36*1.20 |
1500 |
|
M10-130 |
12 |
130 |
170*30*130 |
150*30*130 |
7.5 |
70-90 |
2.00*1.48*1.25 |
2000 |
|
M12-160 |
14 |
160 |
210*40*160 |
190*40*200 |
11 |
40-50 |
2.45*1.80*1.45 |
2800 |
|
M14-20 |
16 |
200 |
210*40*200 |
190*40*200 |
15 |
30-40 |
2.50*1.65*1.50 |
3500 |
|
M16-200 |
18 |
200 |
210*45*200 |
190*45*200 |
15 |
30-40 |
2.75*2.10*1.65 |
4000 |
Apparatus Propono

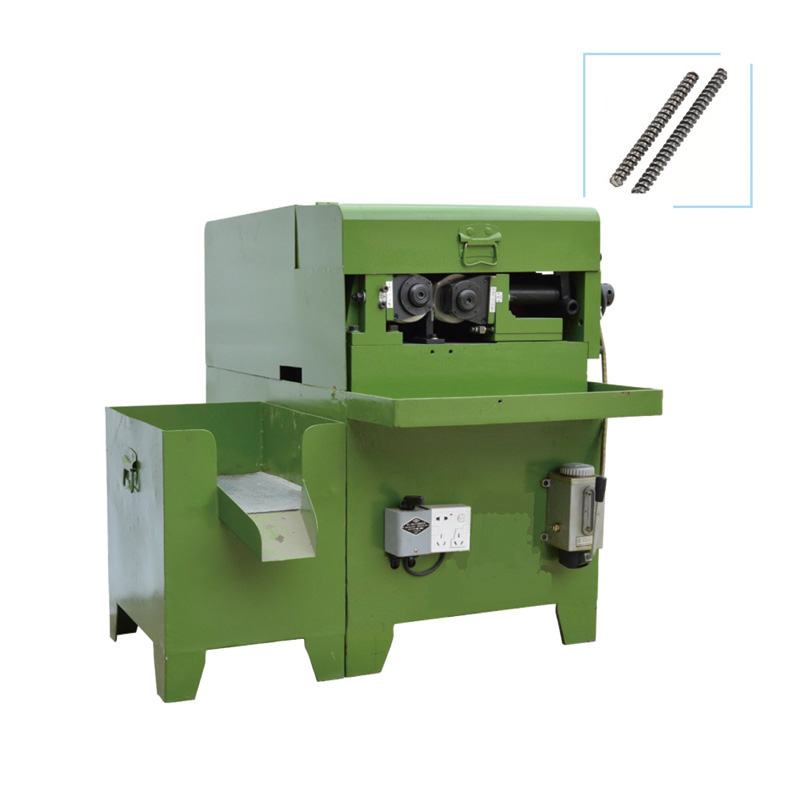

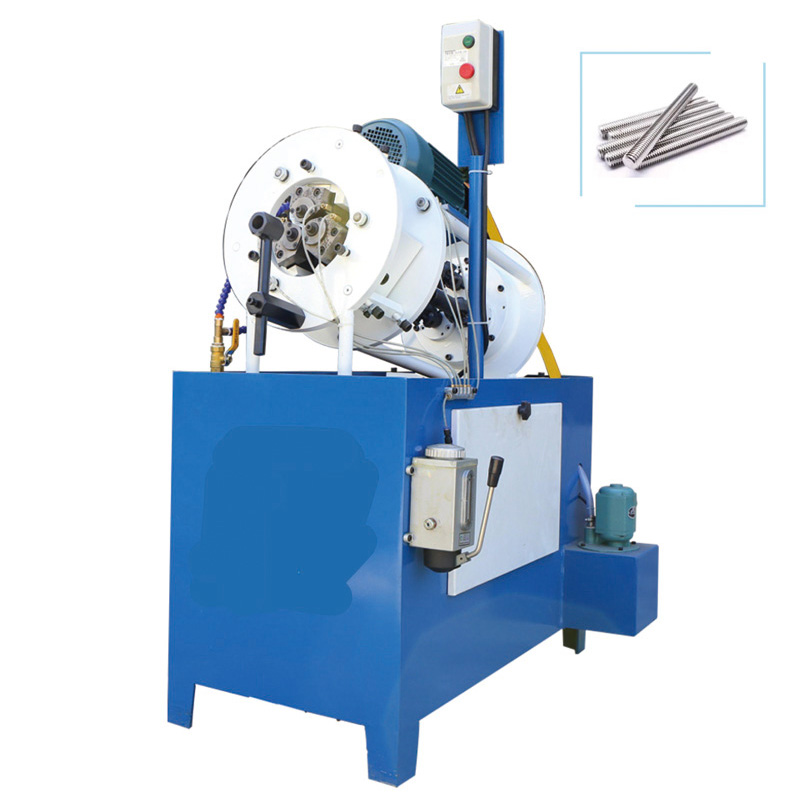

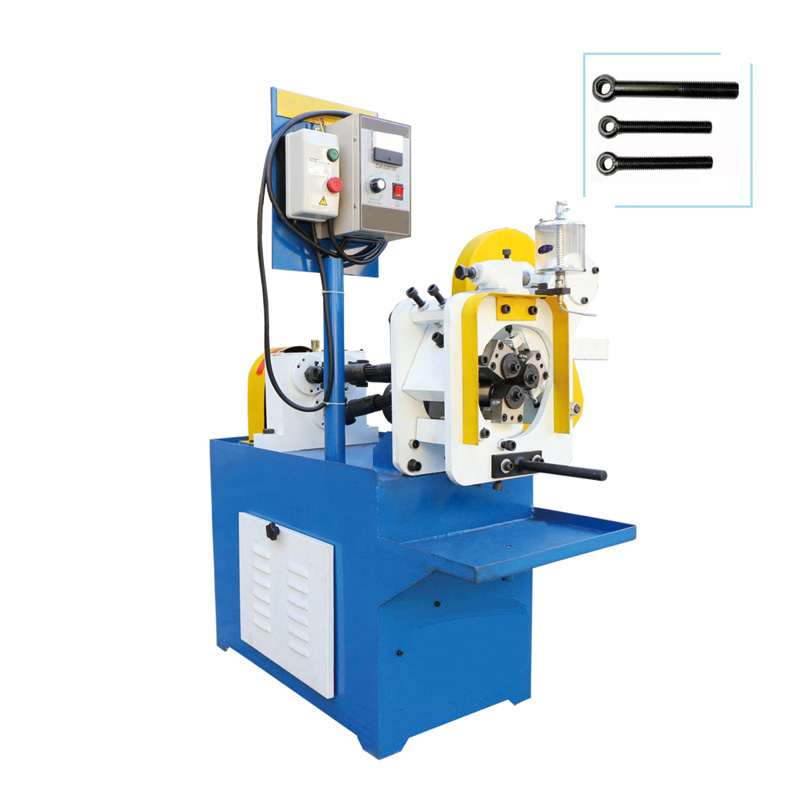

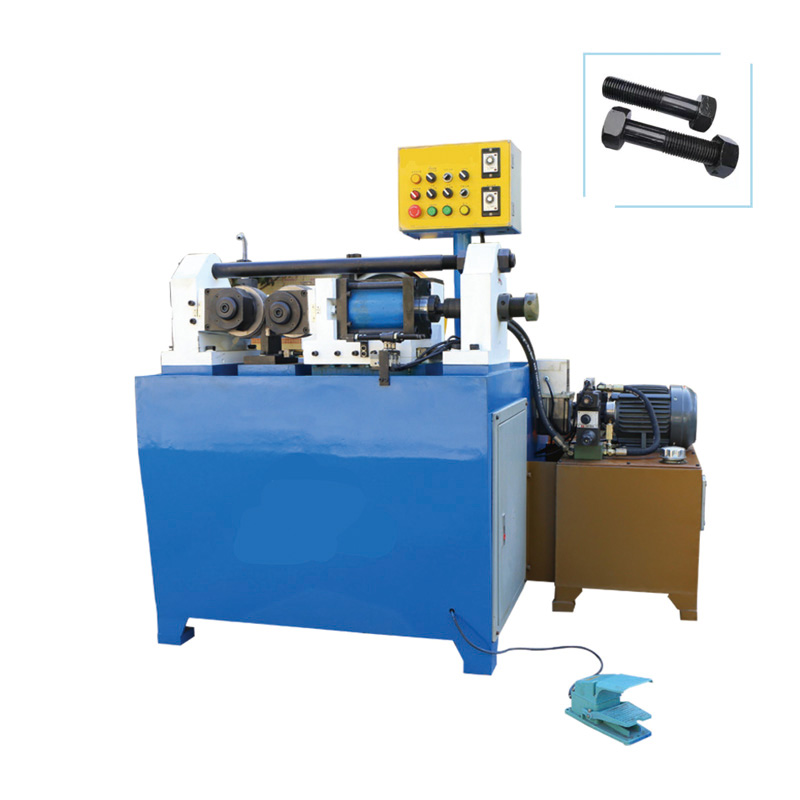

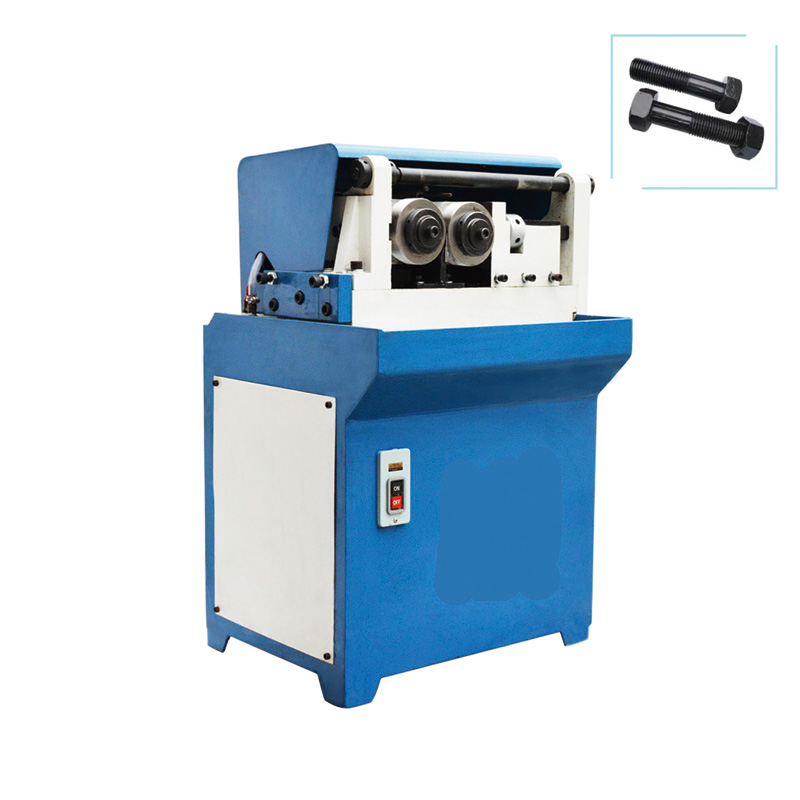

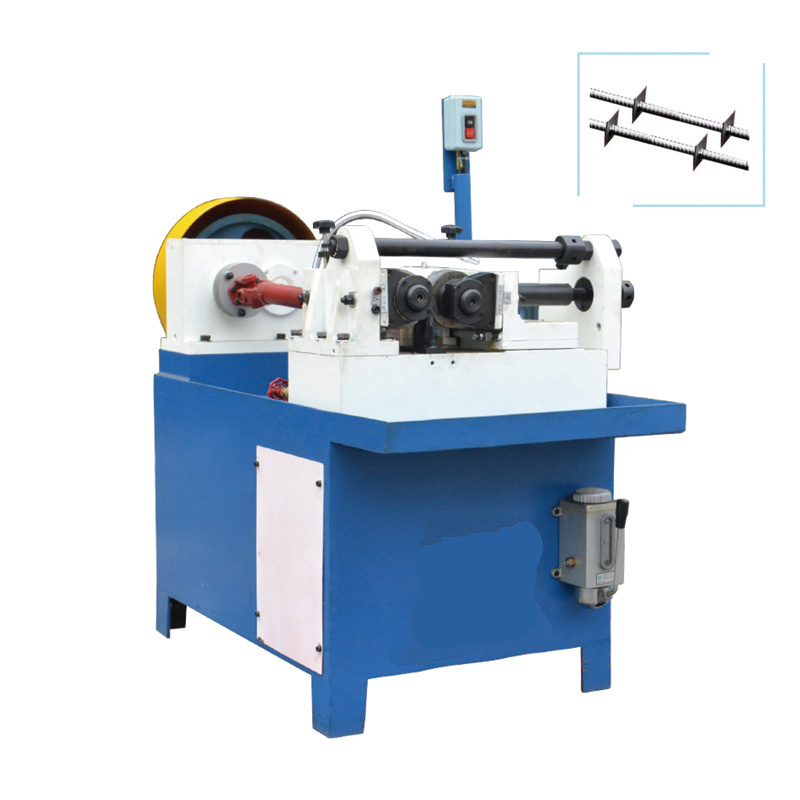

Mitis Steel Screw Thread Rolling Machina:
Producta perfecta:
Productum Propono Video
Mitis Steel Screw Thread Machina Rolling video.
Related Products
RONEN MACHINATIO professio est machinarum fabricationum frigidarum (fasteners) in Sinis. RONEN praebet nux fulmen frigidum petendi machinam, nux apparatus formans, apparatus cochleae cudendi, machina genus velum, nux machina Ictatio, pessulus apparatus pristinus, etc.
Testimonia
Mitis Steel Screw Thread Rolling Machina testimoniales.
FAQ
Q: Uestrum officinas habere clientes in aliis regionibus?
A: exportati sumus in Europam, Asiam, Africam, Americam septentrionalem, Americam Meridionalem, Oceaniam.
Q.What genus sarcina tibi offeres?
A.Normaliter in capsa lignorum, fac omnia bona in bono con
Q: Quousque potes providere warantiam?
A: Mitis Steel Screw Thread Rolling Machina unum annum habet warantum (causas non humanas et vim maiorem condicionem). ROENN MACHINATIO clientibus nostris longam servitutem praebet.
Q: Si ultra tempus praestat, possumus quaestiones technicas apud te reprimere?
A: Oportet velle. Quod vita est officium praebere, quocunque tempore, quid problema, adiuvare vos volumus.
Q: Quae sunt verba solucionis?
A: sustinemus TT/T, L/C, etc. TT, XXX% in antecessum, et statera LXX% ante shipment.
