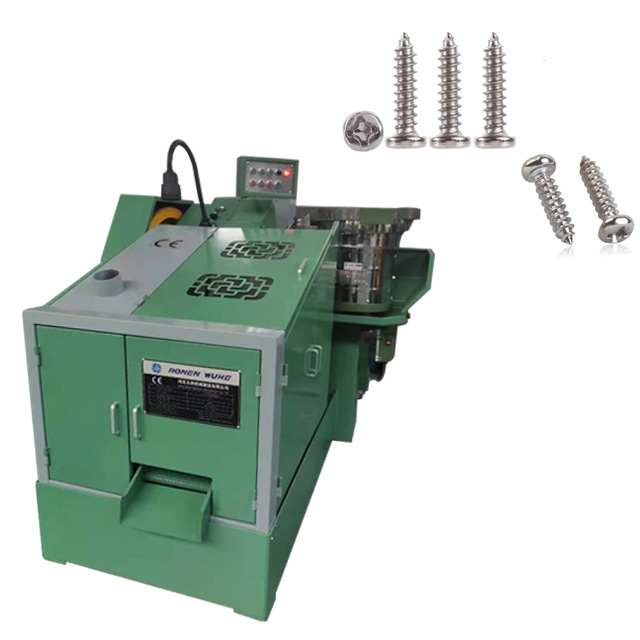

Ut fabrica fabricator machinae professionalis, RONEN MACHINA tibi placet tibi Drywall Screw Threading Machina cum qualitate et rationabili pretio. Te exspectamus cooperantem, si plus scire vis de Machina Sinarum Quality Drywall Screw Threading, Nunc nos consulere potes, in tempore tibi respondebimus!
Drywall Screw Threading Machina characteres:
1. Clavicula machinarum nostrarum ex Taiwan, Iaponia et Germania importatae sunt, quae omnes obsecutae sunt omni summa cura, summa duritia, summus abrasio requisita repugnant.
2.RONEN MACHINERY machinae filiformes in PKO typus fieri possunt.
3. Lassus rail viae unius designationis machinam in alta celeritate currit et productio efficientia alta est.
Drywall Screw Threading Machina Parameter (specification)
|
Model |
3H30A/B |
4H45A/B |
4H55A/B |
6H55A/B |
6H70B |
6H105B |
6H40BL |
8H80B |
8H105B |
|
Diameter Range (mm) |
2-3.5 |
2.5-4 |
3-5 |
4-6 |
4-6 |
4-8 |
4-8 |
5-8 |
5-10 |
|
Blank Max (mm) |
30 |
45 |
55 |
50 |
70/85 |
105/125 |
40 |
80 |
105/125 |
|
Max Thread Longitudo (mm) |
30 |
40 |
50 |
45 |
70 |
100 |
40 |
75 |
100 |
|
capacitas (pcs/min) |
230-270 |
180-230 |
160-200 |
120-160 |
120-160 |
120-140 |
60 |
90-120 |
90-120 |
|
Praecipuum Motor（KW) |
1.5 |
2.2 |
3 |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
|
Altitudo Die Pocket (mm) |
25*30*70/80 |
25*45*76/90 |
25*55*85/100 |
25*50* 110/125 |
25*70* 110/125 |
25*105* 110/125 |
40*40*235/260 |
30*80* 150/170 |
30*105*150/170 |
|
Oleum Motor(KW) |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.37 |
0.37 |
|
Feed Motor(KW) |
0.37 |
0.4 |
0.5 |
0.37 |
0.6 |
0.6 |
0.5 |
0.6 |
0.6 |
|
Stipare Volume (cm) |
150*91*140 |
170* 125* 150 |
172*130*150 |
185* 125* 150 |
195* 145* 160 |
200*160*160 |
234*140*160 |
245* 150*160 |
244* 170*160 |
|
NW (KG) |
570 |
850 |
1170 |
1400 |
1500 |
1700 |
2500 |
3100 |
3200 |
|
Model |
8H150B |
10H105B |
12H150B |
12TH150B |
14H105B |
16H150B/C |
20H150B/C |
24H150C |
|
Diameter Range (mm) |
5-10 |
6-10 |
8-14 |
8-14 |
8-14 |
10-18 |
16-22 |
20-25 |
|
Blank Max (mm) |
150/200 |
105/125 |
150/200 |
150/200 |
105 |
150/250 |
150/250 |
150/250 |
|
Max Thread Longitudo (mm) |
150 |
100 |
150 |
150 |
100 |
150 |
150 |
150 |
|
capacitas (pcs/min) |
90-110 |
90-110 |
75 |
75 |
75 |
45-50 |
35-45 |
42 |
|
Praecipuum Motor（KW) |
11 |
11 |
15 |
15 |
15 |
22 |
30 |
37 |
|
Altitudo Die Pocket (mm) |
30*150*150/170 |
30*105*150/170 |
40* 150* 190/210 |
40* 150* 190/210 |
40* 150* 190/210 |
40* 150* 235/260 |
50* 150* 285/310 |
50* 150* 380/420 |
|
Oleum Motor (KW) |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
0.36 |
0.36 |
0.36 |
|
Pasce Motor (KW) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1 |
2 |
4 |
|
Stipare Volume (cm) |
245*190*170 |
250*160*170 |
315* 195* 170 |
304* 200* 185 |
315* 195* 170 |
363*215*200+ |
410*215*200+ |
420*225*224+ |
|
NW (KG) |
3300 |
3500 |
4400 |
5200 |
4600 |
12300 |
14700 |
19000 |

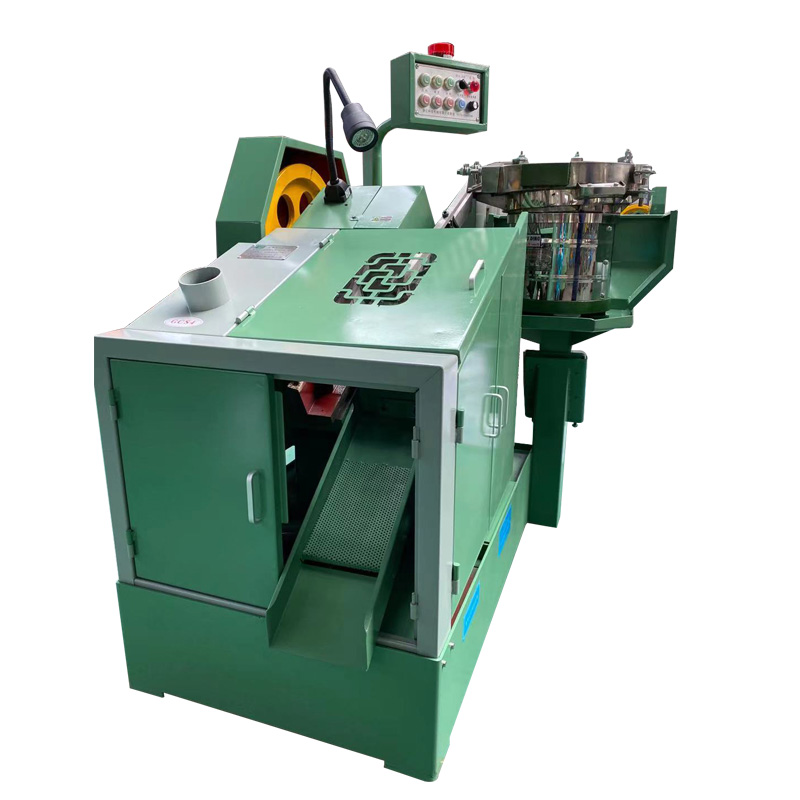

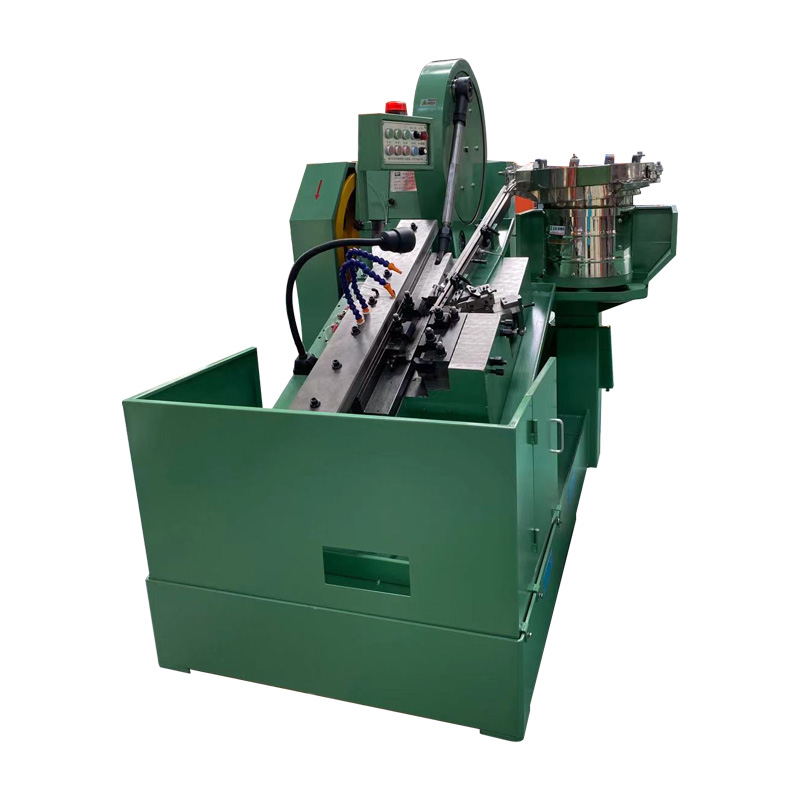

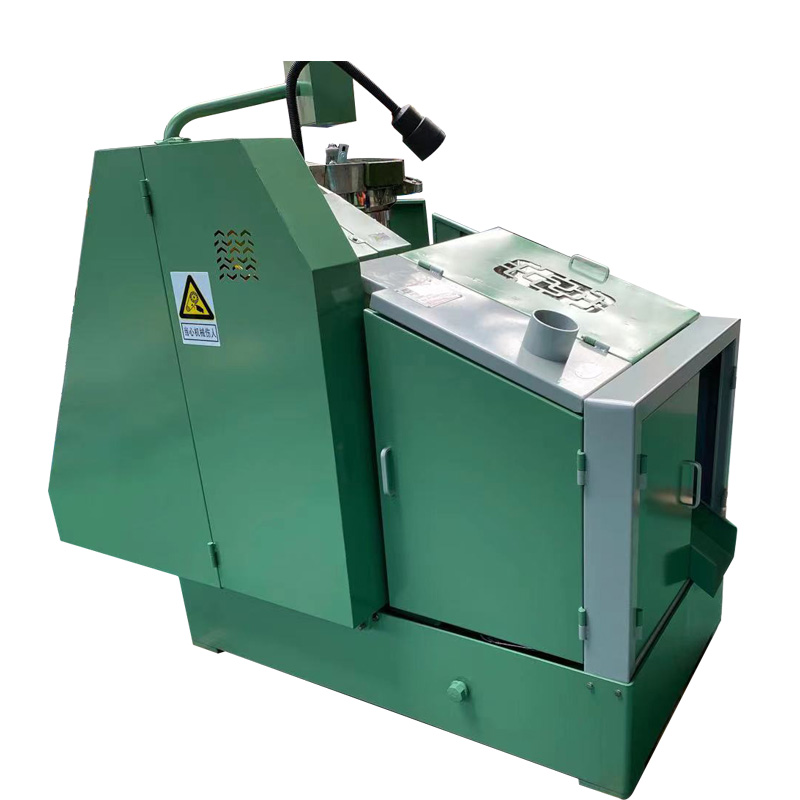

Apparatus Details et complevit Products Propono
Drywall Screw Threading Machina maxime adhibetur ad vexillum expediendas partes externae stamina et vires altae.

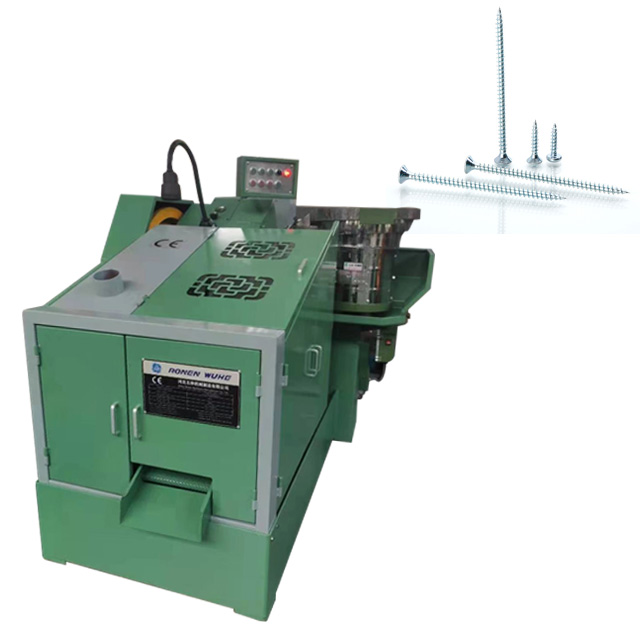

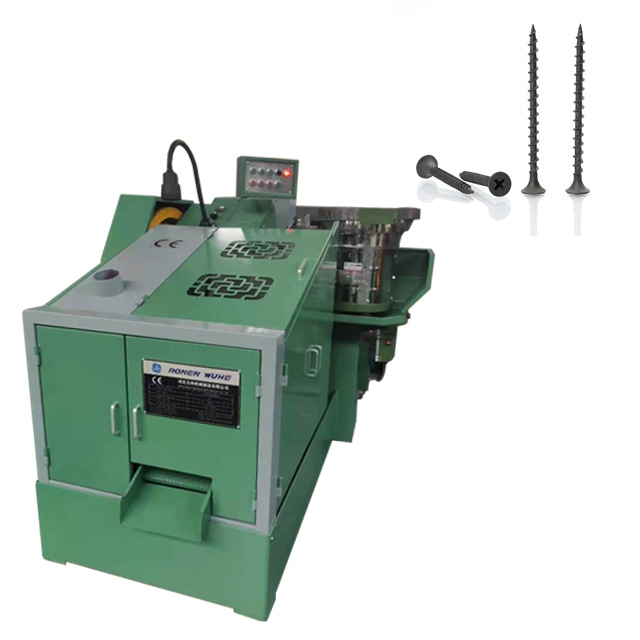

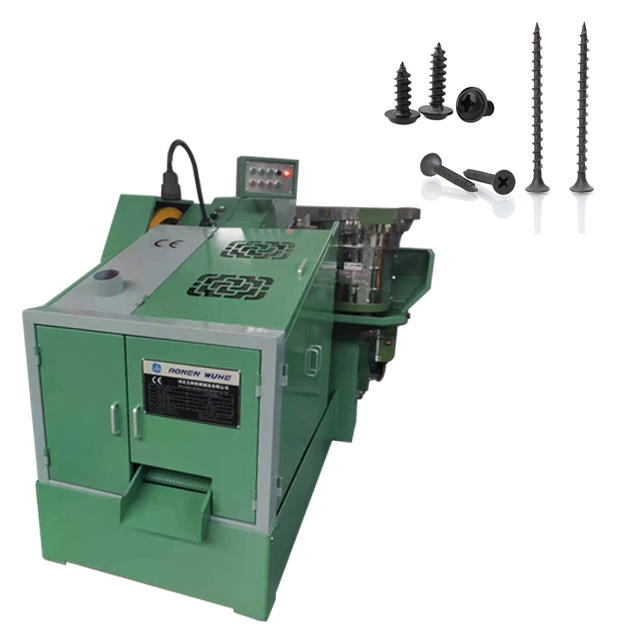

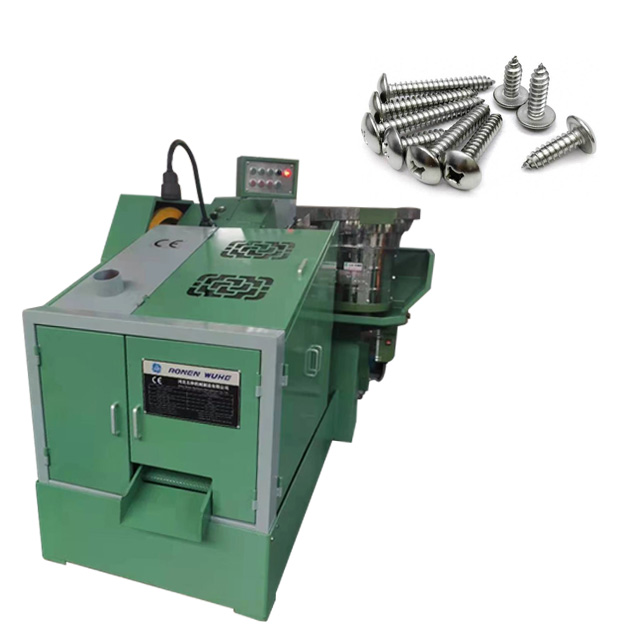

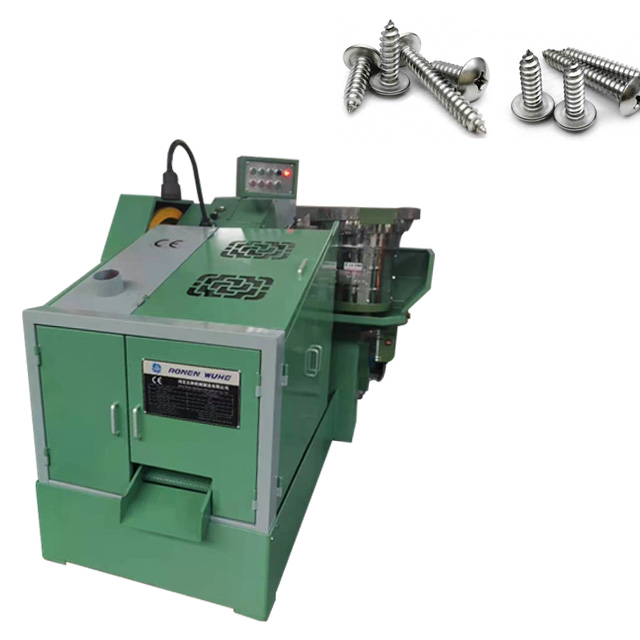

Producta perfecta:
Product Function Propono Video
Drywall Screw Threading Machina operantem video.
Stipare et Delivery
Drywall Screw Threading Machina sarcina et naves.
Testimonia
Testimonia pro Drywall Screw Threading Machina.
FAQ
Q:Do tibi morem officia praebere?
A:Imo, machinam customize secundum exempla tua vel delineatas.
Q: Quousque potes providere warantiam?
A: machina nostra unum annum habet warantum.
Q: Quae vis apparatus copia?
A: Vexillum virtutis copia in Sinis est 380V, 3P, 50Hz. Lorem ipsum etiam possimus.
Q: Quae sunt verba solucionis?
A: sustinemus TT/T, L/C, etc. TT, XXX% in antecessum, et statera LXX% ante shipment.
Q: Potesne providere committendo video et exempla?
A: Certus. Informationes (photos, videos, etc.) vobiscum in et post commissionem renovabimus, exempla mittemus. Shipment instituetur nisi postquam recte confirmas.
