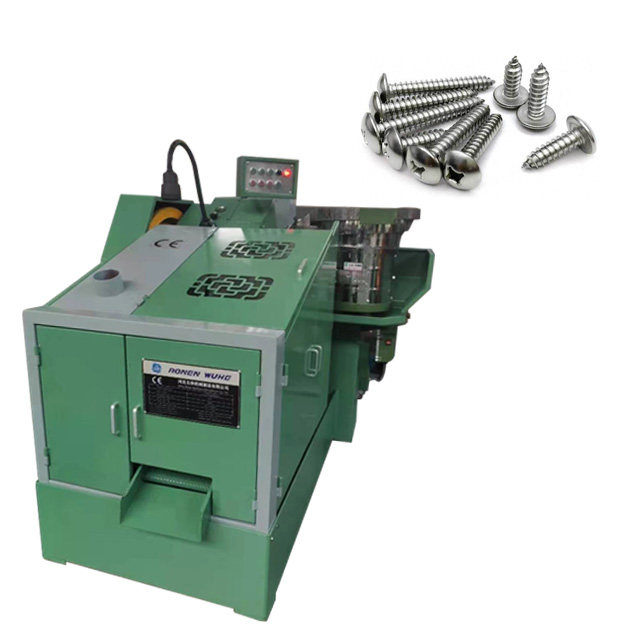

Iron Screw Threading Machina

Ut professio Curre Constanter Maximum euismod Screw Threading Machina fabricare, certificare potes emere Maximum euismod Screw Threading Machina ex officina nostra, et RONEN MACHINA tibi optimam machinam et optimum ministerium praebebit. Inhaeremus principali qualitatis orientationis ac prioritati emptoris, litteras vestras, vocat et inquisitiones pro cooperatione negotiorum sincero animo suscipimus.

Mitte Inquisitionem

depictio producti

Ferrum stupra Threading Machina features:

1. Nostrae machinae systema oleum cibationis coactum adhibent, ut cuncta machinae componentes condiciones cinematographicas in cinematographicis currunt et machina diu durabilis esse posset.
2.RONEN MACHINATIO machina lina in genere PKO fieri potest.


Ferrum stupra Threading Machina Parameter (specification)

Model

3H30A/B

4H45A/B

4H55A/B

6H55A/B

6H70B

6H105B

6H40BL

8H80B

8H105B

Diameter Range

(mm)

2-3.5

2.5-4

3-5

4-6

4-6

4-8

4-8

5-8

5-10

Blank Max (mm)

30

45

55

50

70/85

105/125

40

80

105/125

Max Thread Longitudo (mm)

30

40

50

45

70

100

40

75

100

capacitas

(pcs/min)

230-270

180-230

160-200

120-160

120-160

120-140

60

90-120

90-120

Praecipuum Motor(KW)

1.5

2.2

3

4

5.5

5.5

5.5

7.5

7.5

Altitudo Die Pocket (mm)

25*30*70/80

25*45*76/90

25*55*85/100

25*50* 110/125

25*70* 110/125

25*105* 110/125

40*40*235/260

30*80* 150/170

30*105*150/170

Oleum Motor(KW)

0.18

0.18

0.18

0.18

0.18

0.18

0.18

0.37

0.37

Feed Motor(KW)

0.37

0.4

0.5

0.37

0.6

0.6

0.5

0.6

0.6

Stipare Volume (cm)

150*91*140

170* 125* 150

172*130*150

185* 125* 150

195* 145* 160

200*160*160

234*140*160

245* 150*160

244* 170*160

NW (KG)

570

850

1170

1400

1500

1700

2500

3100

3200


Model

8H150B

10H105B

12H150B

12TH150B

14H105B

16H150B/C

20H150B/C

24H150C

Diameter Range

(mm)

5-10

6-10

8-14

8-14

8-14

10-18

16-22

20-25

Blank Max (mm)

150/200

105/125

150/200

150/200

105

150/250

150/250

150/250

Max Thread Longitudo (mm)

150

100

150

150

100

150

150

150

capacitas

(pcs/min)

90-110

90-110

75

75

75

45-50

35-45

42

Praecipuum Motor(KW)

11

11

15

15

15

22

30

37

Altitudo Die Pocket (mm)

30*150*150/170

30*105*150/170

40* 150* 190/210

40* 150* 190/210

40* 150* 190/210

40* 150* 235/260

50* 150* 285/310

50* 150* 380/420

Oleum Motor

(KW)

0.37

0.37

0.37

0.37

0.37

0.36

0.36

0.36

Pasce Motor

(KW)

0.8

0.8

0.8

0.8

0.8

1

2

4

Stipare Volume (cm)

245*190*170

250*160*170

315* 195* 170

304* 200* 185

315* 195* 170

363*215*200+
160*160*190

410*215*200+
160*160*190

420*225*224+
160*160*190

NW (KG)

3300

3500

4400

5200

4600

12300

14700

19000


Apparatus Details et complevit Products Propono

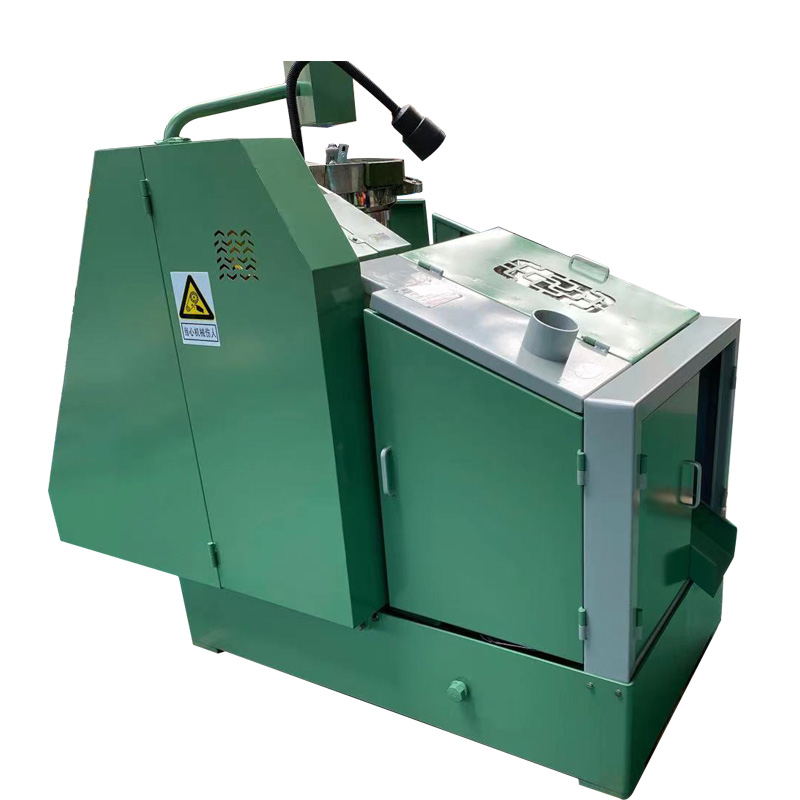

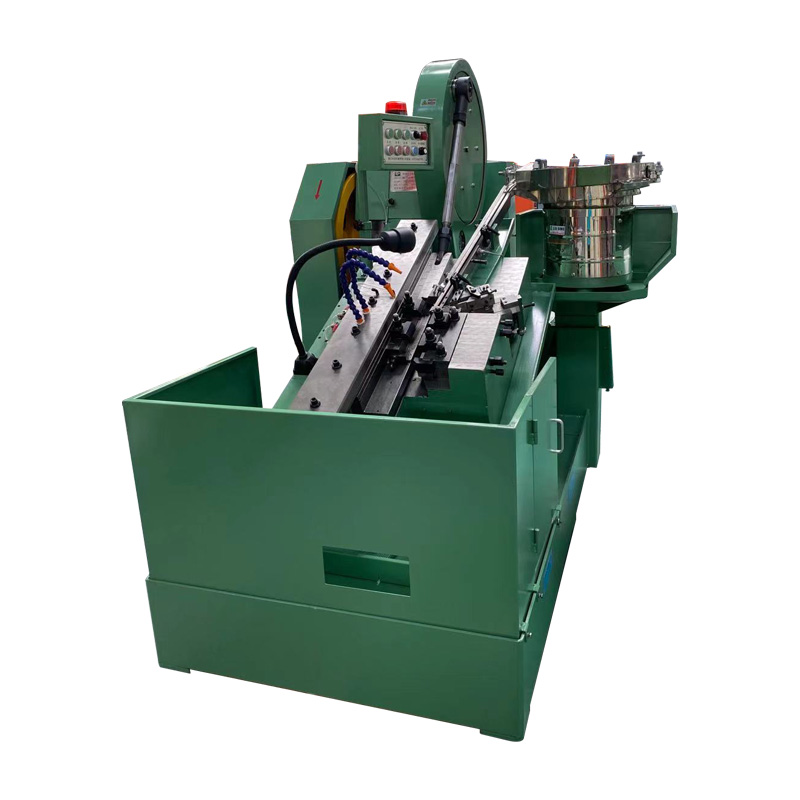

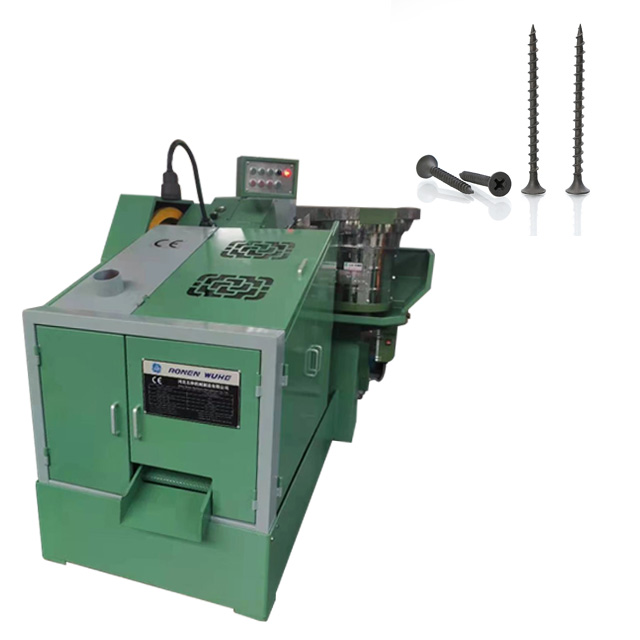

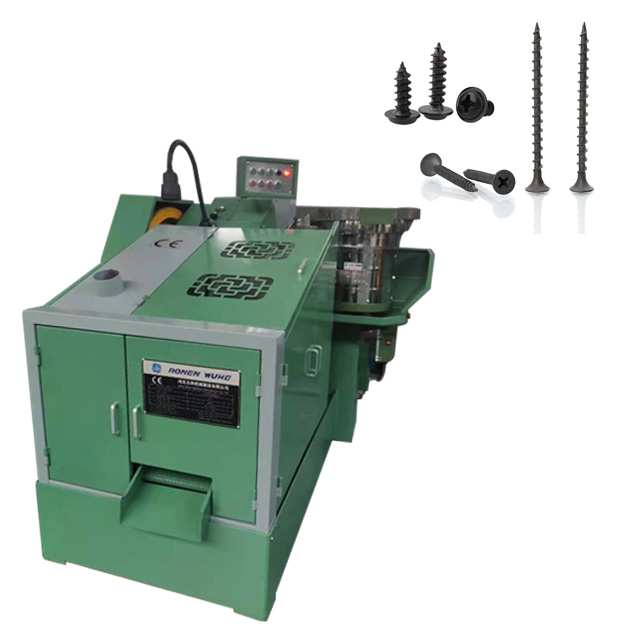

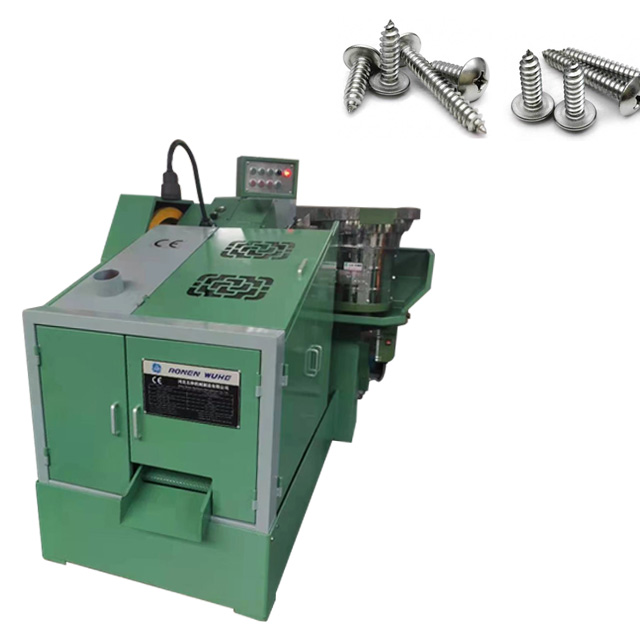

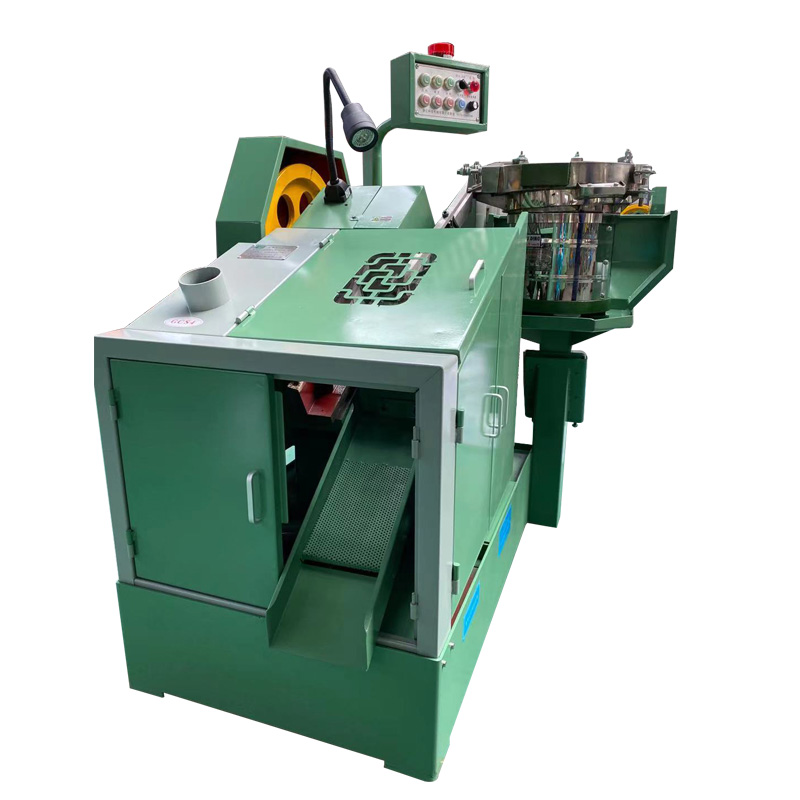

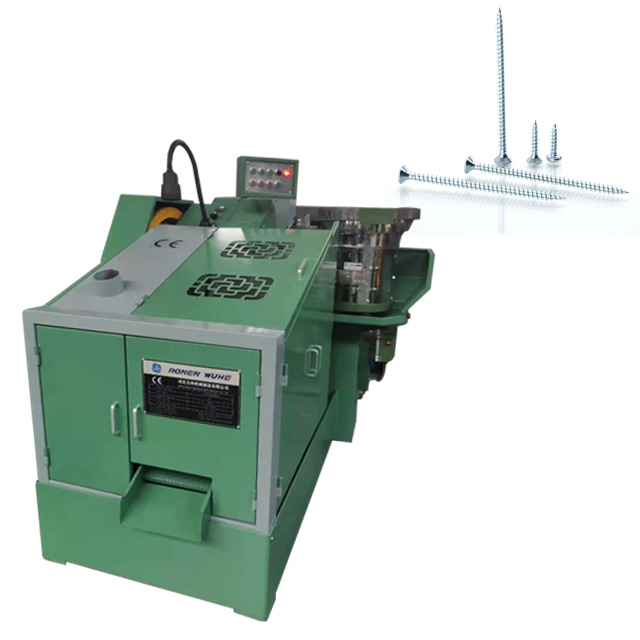

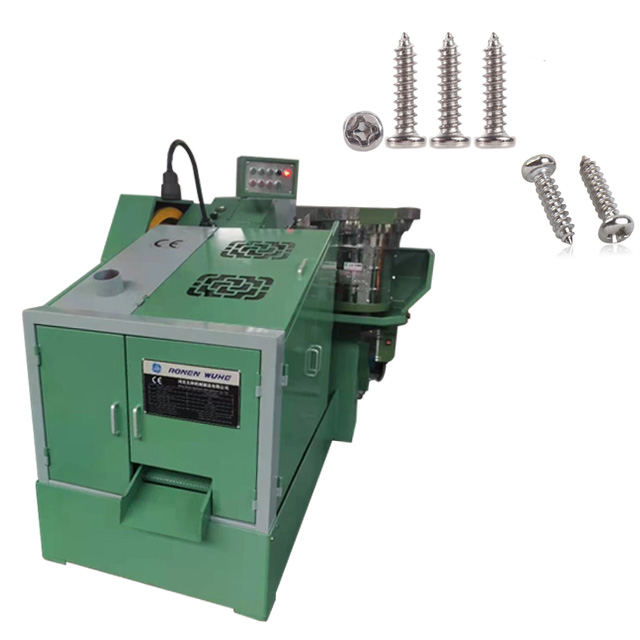

Iron Screw Threading Machina in officina RONEN.

Producta perfecta:


Product Function Propono Video

Iron Screw Threading Machina operantem video.


Stipare et Delivery

Iron Screw Threading Machina sarcina et naves.


Testimonia

Testimonia pro Machina Iron Screw Threading.


FAQ

Q: Uestrum officinas habere clientes in aliis regionibus?

A: exportati sumus in Europam, Asiam, Africam, Americam septentrionalem, Americam Meridionalem, Oceaniam.


Q: Quae vis apparatus copia?

A: Vexillum virtutis copia in Sinis est 380V, 3P, 50Hz. Lorem ipsum etiam possimus.


Q.What genus sarcina tibi offeres?

A.Normaliter in FCL naviculas, si emptoris indiget, causas ligneas, grabatum sarcinas aliasve sarcinas aptas facere possumus.


Q: Quae sunt verba solucionis?

A: sustinemus TT/T, L/C, etc. TT, XXX% in antecessum, et statera LXX% ante shipment.


Q: Quid a nobis emere potes?

A: Frigidi apparatus, machinae machinae frigidae, machinae nuces fulmina, machinae cochleae, machina lina et cetera.
