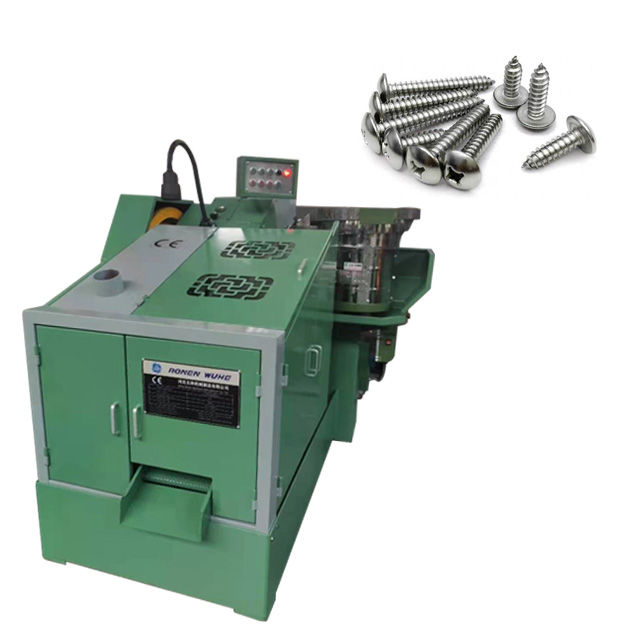

RONEN una e nobilium Sinarum Frigidis Machinis Heading (Fastener) fabricantium est. Nostra officina specialitas in fabricandis Automated Screw Threading Machina. RONEN fabrum praefectum habet plusquam XX annorum experientiam in consilio et in facto. Nos in Europam, Asiam, Africam, Americam Septentrionalem, Americam Meridionalem, Oceaniam, exportaverant. Spero te aedificare negotium necessitudinem.
Machina Threading Automated stupra commoda:
1.Single lapsus ferriviarius modus designandi machinam in alta celeritate currit et efficientia productio alta est.
2. Clavicula machinarum nostrarum a Taiwan, Iaponia et Germania importatae sunt, quae omnes obsecutae sunt cum omni summa subtilitate, summa duritia, summa abrasione requisita repugnant.
Automated stupra Threading Machina Parameter (specification)
|
Model |
3H30A/B |
4H45A/B |
4H55A/B |
6H55A/B |
6H70B |
6H105B |
6H40BL |
8H80B |
8H105B |
|
Diameter Range (mm) |
2-3.5 |
2.5-4 |
3-5 |
4-6 |
4-6 |
4-8 |
4-8 |
5-8 |
5-10 |
|
Blank Max (mm) |
30 |
45 |
55 |
50 |
70/85 |
105/125 |
40 |
80 |
105/125 |
|
Max Thread Longitudo (mm) |
30 |
40 |
50 |
45 |
70 |
100 |
40 |
75 |
100 |
|
capacitas (pcs/min) |
230-270 |
180-230 |
160-200 |
120-160 |
120-160 |
120-140 |
60 |
90-120 |
90-120 |
|
Praecipuum Motor（KW) |
1.5 |
2.2 |
3 |
4 |
5.5 |
5.5 |
5.5 |
7.5 |
7.5 |
|
Altitudo Die Pocket (mm) |
25*30*70/80 |
25*45*76/90 |
25*55*85/100 |
25*50* 110/125 |
25*70* 110/125 |
25*105* 110/125 |
40*40*235/260 |
30*80* 150/170 |
30*105*150/170 |
|
Oleum Motor(KW) |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.18 |
0.37 |
0.37 |
|
Feed Motor(KW) |
0.37 |
0.4 |
0.5 |
0.37 |
0.6 |
0.6 |
0.5 |
0.6 |
0.6 |
|
Stipare Volume (cm) |
150*91*140 |
170* 125* 150 |
172*130*150 |
185* 125* 150 |
195* 145* 160 |
200*160*160 |
234*140*160 |
245* 150*160 |
244* 170*160 |
|
NW (KG) |
570 |
850 |
1170 |
1400 |
1500 |
1700 |
2500 |
3100 |
3200 |
|
Model |
8H150B |
10H105B |
12H150B |
12TH150B |
14H105B |
16H150B/C |
20H150B/C |
24H150C |
|
Diameter Range (mm) |
5-10 |
6-10 |
8-14 |
8-14 |
8-14 |
10-18 |
16-22 |
20-25 |
|
Blank Max (mm) |
150/200 |
105/125 |
150/200 |
150/200 |
105 |
150/250 |
150/250 |
150/250 |
|
Max Thread Longitudo (mm) |
150 |
100 |
150 |
150 |
100 |
150 |
150 |
150 |
|
capacitas (pcs/min) |
90-110 |
90-110 |
75 |
75 |
75 |
45-50 |
35-45 |
42 |
|
Praecipuum Motor（KW) |
11 |
11 |
15 |
15 |
15 |
22 |
30 |
37 |
|
Altitudo Die Pocket (mm) |
30*150*150/170 |
30*105*150/170 |
40* 150* 190/210 |
40* 150* 190/210 |
40* 150* 190/210 |
40* 150* 235/260 |
50* 150* 285/310 |
50* 150* 380/420 |
|
Oleum Motor (KW) |
0.37 |
0.37 |
0.37 |
0.37 |
0.37 |
0.36 |
0.36 |
0.36 |
|
Pasce Motor (KW) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
1 |
2 |
4 |
|
Stipare Volume (cm) |
245*190*170 |
250*160*170 |
315* 195* 170 |
304* 200* 185 |
315* 195* 170 |
363*215*200+ |
410*215*200+ |
420*225*224+ |
|
NW (KG) |
3300 |
3500 |
4400 |
5200 |
4600 |
12300 |
14700 |
19000 |
Apparatus Details et complevit Products Propono

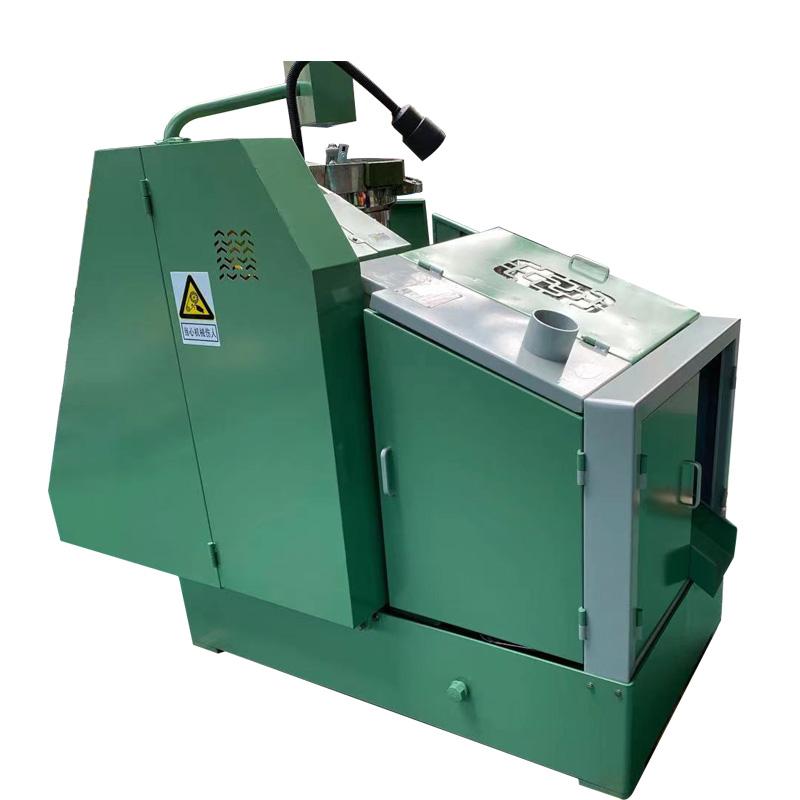

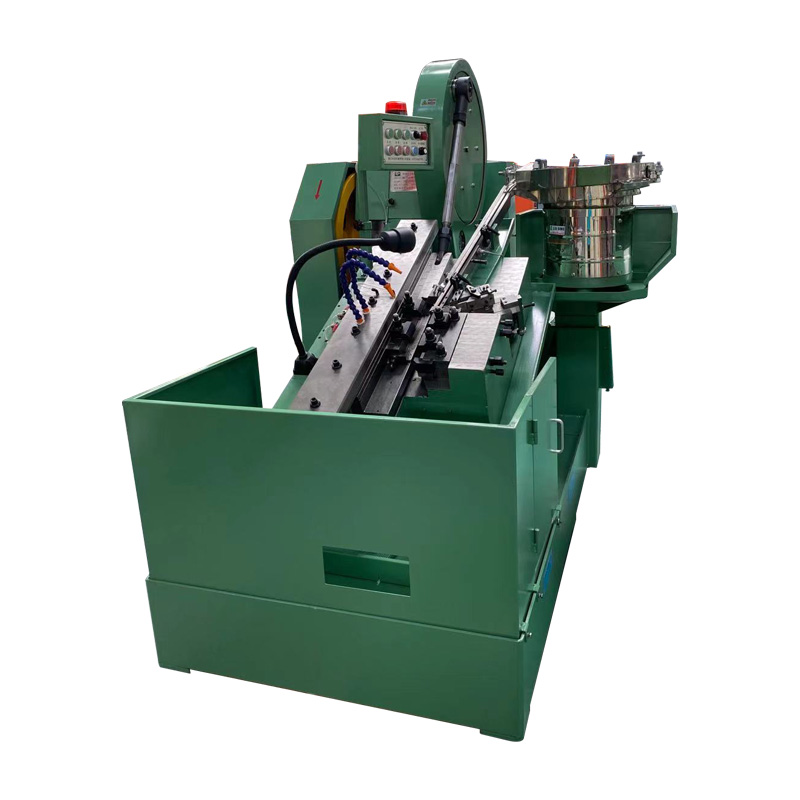

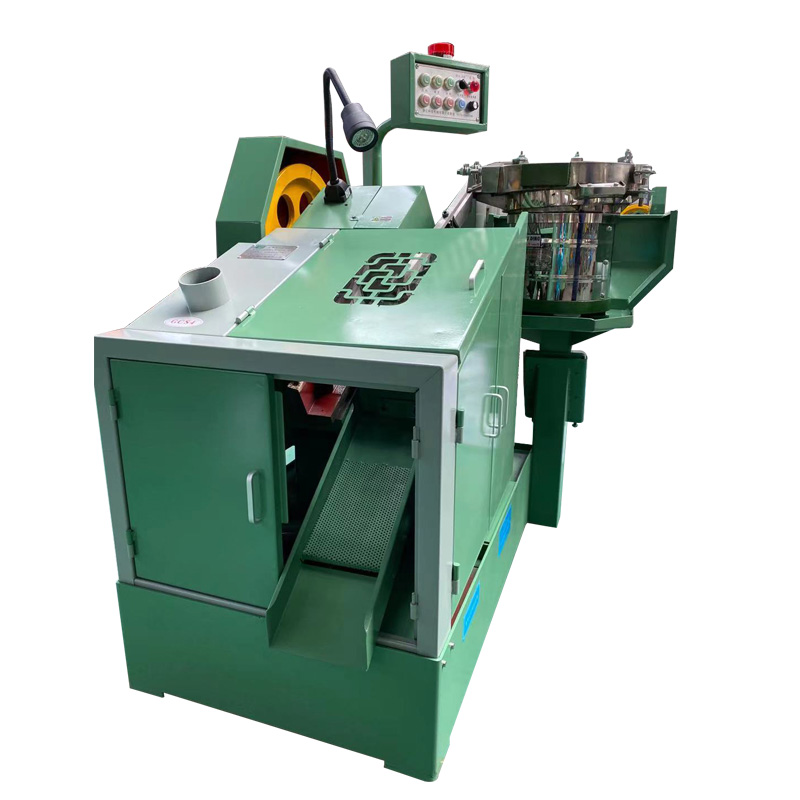

Automated Screw Threading Machine in RONEN officina.

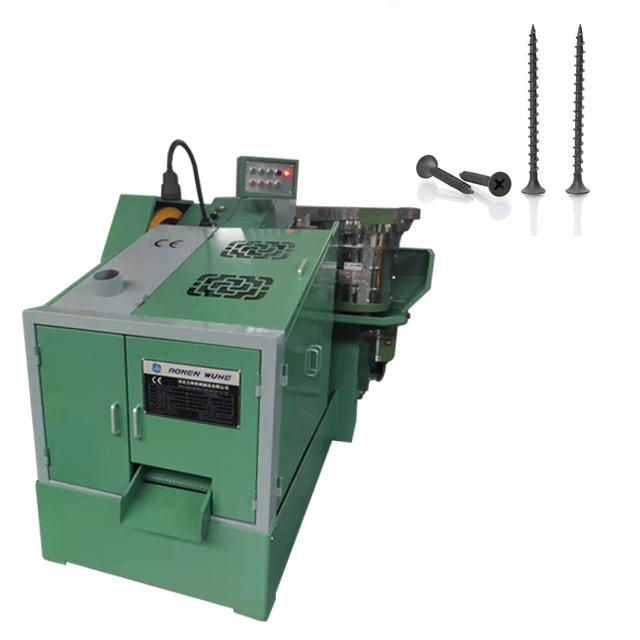

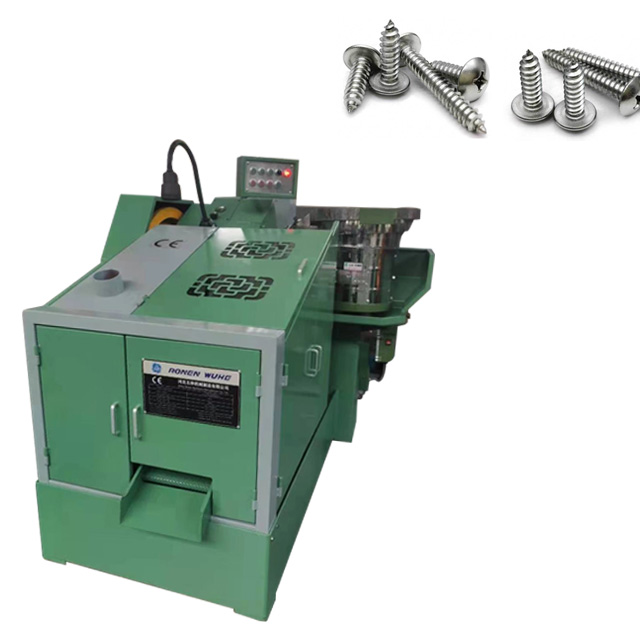

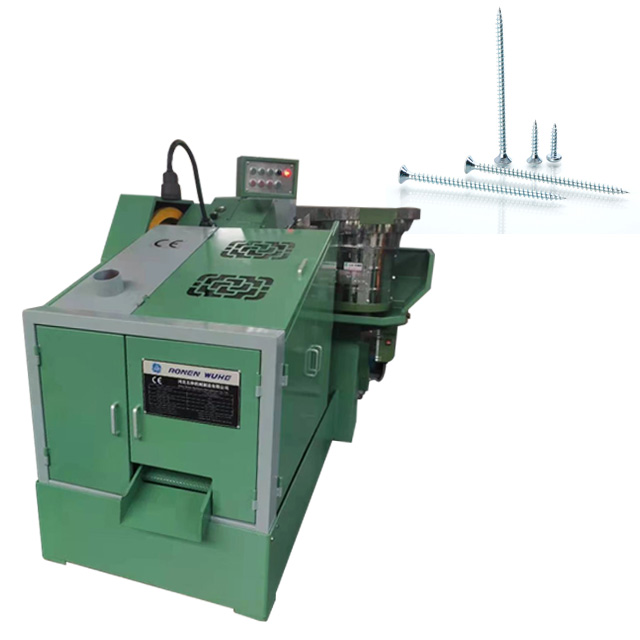

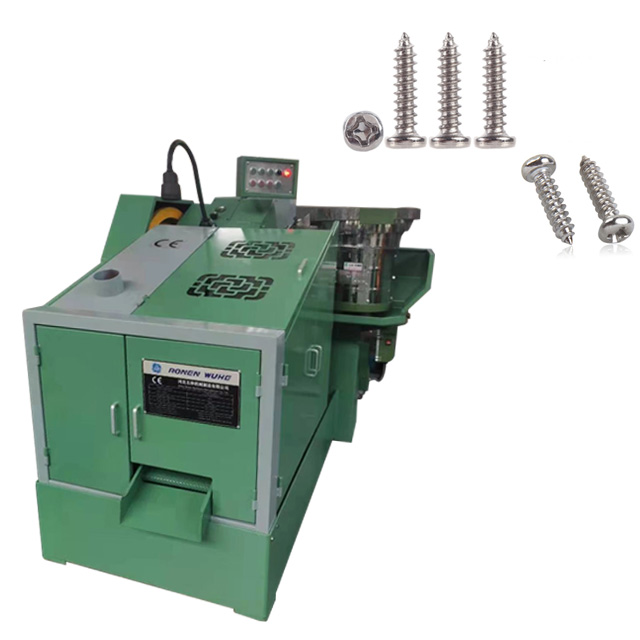

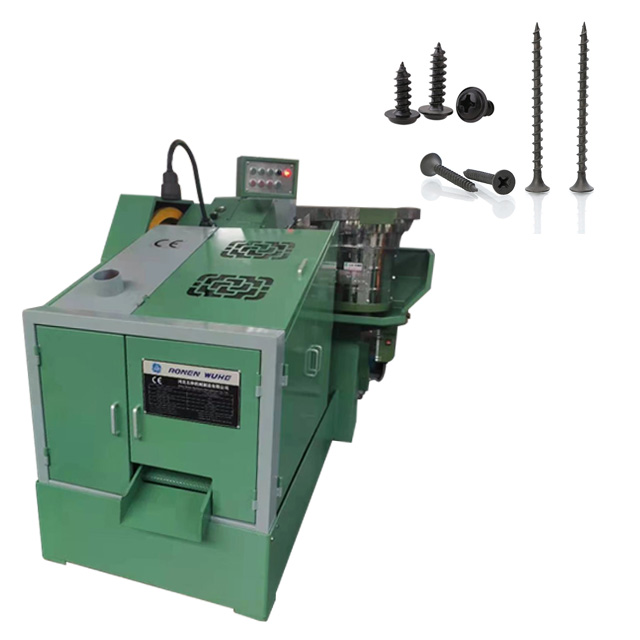

Producta perfecta:
Product Function Propono Video
Automated Screw Threading Machina opus video.
Stipare et Delivery
Automated Screw Threading Machine is packing and shipping.
Testimonia
Testimonia pro Automated Screw Threading Machina.
FAQ
Q: Potesne providere committendo video et exempla?
A: Certus. Informationes (photos, videos, etc.) vobiscum in et post commissionem renovabimus, exempla mittemus. Shipment instituetur nisi postquam recte confirmas.
Q: Quid de partus tempore?
A: Communiter intra XXX dies, sed pendet in tempore quantitatis et ordinis.
Q: Ubi est officina tua?
A: Officina fabricanda nostra in Sinis Hebei Provincia sita est.
Q:Do tibi morem officia praebere?
A:Imo, machinam customize secundum exempla tua vel delineatas.
Q: Numquid secundum contractum partus tempus disponere?
A: Scilicet. bona vobis quam primum ex contractu trademus. Non te usui officit.
